82729 877U1000

Active

Belden Inc.

MULTI-PAIR 4COND 24AWG NAT

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 4COND 24AWG NAT

Technical Specifications

Parameters and characteristics for this part

Specification	82729 877U1000

Cable Type	Multi-Pair
Conductor Insulation	Foam Fluorinated Ethylene-Propylene (FFEP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.255 "
Jacket (Insulation) Diameter [diameter]	6.48 mm
Jacket (Insulation) Material	Low Smoke Poly-Vinyl Chloride (LSPVC), Plenum
Jacket (Insulation) Thickness	0.356 mm
Jacket (Insulation) Thickness	0.014 in
Jacket Color	Natural
Length	1000 ft
Length	304.8 m
Number of Conductors	4
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	0 °C
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Voltage	300 V
Wire Gauge	24 AWG

Part	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Material	Cable Type	Conductor Insulation	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket Color	Voltage	Jacket (Insulation) Material	Number of Conductors	Shield Coverage	Features	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Material	Shield Type	Length	Length	Operating Temperature [Max]	Operating Temperature [Min]
Belden Inc. 82729 877U1000	24 AWG	0.255 "	6.48 mm	Aluminum	Multi-Pair	Foam Fluorinated Ethylene-Propylene (FFEP)	0.356 mm	0.014 in	Natural	300 V	Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum	4	100 %	Drain Wire	32 AWG	7	Copper Tinned	Foil	1000 ft	304.8 m	75 ░C	0 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

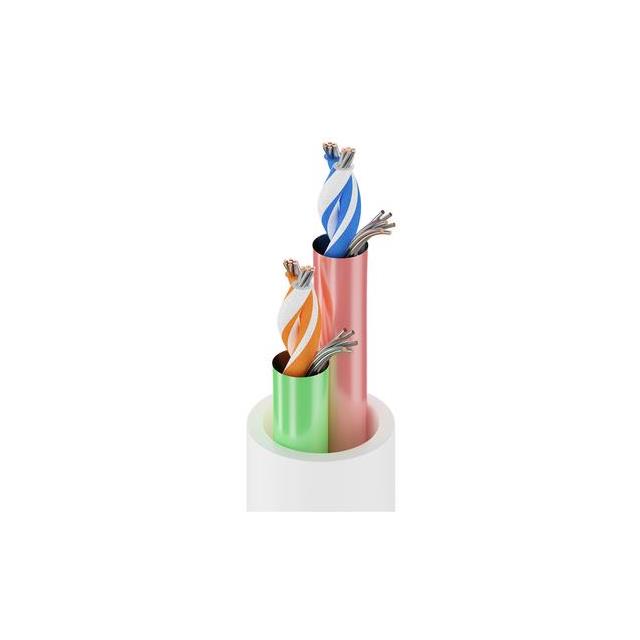

4 (2 Pair Twisted) Conductor Multi-Pair Cable Natural 24 AWG Foil 1000.0' (304.8m)
