Description
General part information

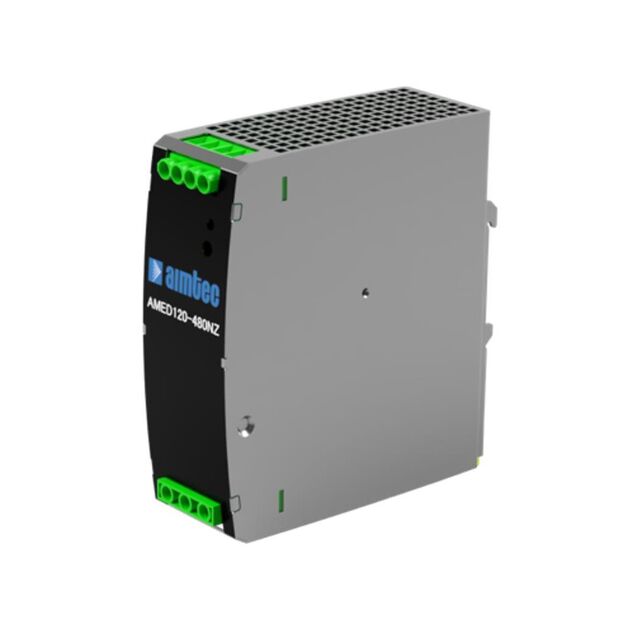

AMED120-48S480NZ
AC/DC DIN RAIL SUPPLY 2X48V 120W
Technical Specifications
Parameters and characteristics for this part
| Specification | AMED120-48S480NZ |
|---|---|
| AC Voltage - Input (Max) | 600 VAC |
| AC Voltage - Input (Min) | 180 VAC |
| Applications | Industrial |
| Approval Agency | CE |
| Current - Output (Max) | 2.5 A |
| DC Voltage - Input (Max) | 848 V |
| DC Voltage - Input (Min) | 254 V |
| Efficiency | 92 % |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Power (Watts) | 120 W |
| Size / Dimension Height | 4.88 in |
| Size / Dimension Length | 4.33 in |
| Size / Dimension Width | 1.61 in |
| Voltage - Output 1 | 48 V |
