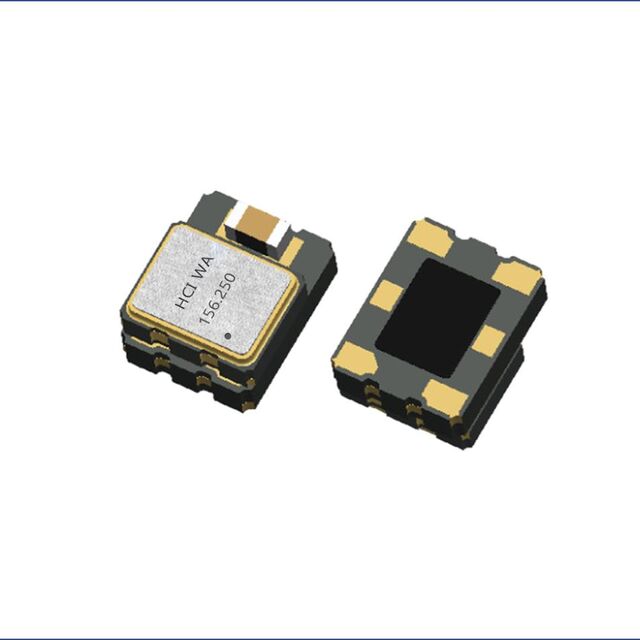

8132D6-1000.000LJ33DTK
ActiveSuzhou Hangjing Elec&Tech Co.,Ltd
TCXO,3225,6PIN,LVDS,1000MHZ,3.3V
8132D6-1000.000LJ33DTK
ActiveSuzhou Hangjing Elec&Tech Co.,Ltd
TCXO,3225,6PIN,LVDS,1000MHZ,3.3V
Description
General part information
8132D6-1000.000LJ33DTK
1 GHz XO (Standard) LVDS Oscillator 3.3V Enable/Disable 6-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | 8132D6-1000.000LJ33DTK |
|---|---|
| Base Resonator | Crystal |
| Frequency | 1 GHz |
| Frequency Stability | 3 ppm, 2 ppm |
| Function | Enable, Disable |
| Height - Seated (Max) | 0.035 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output | LVDS |
| Package / Case | No Lead, 6-SMD |
| Size / Dimension Length | 0.126 in |
| Size / Dimension Width | 0.098 in |
| Type | XO (Standard) |
| Voltage - Supply | 3.3 V |
