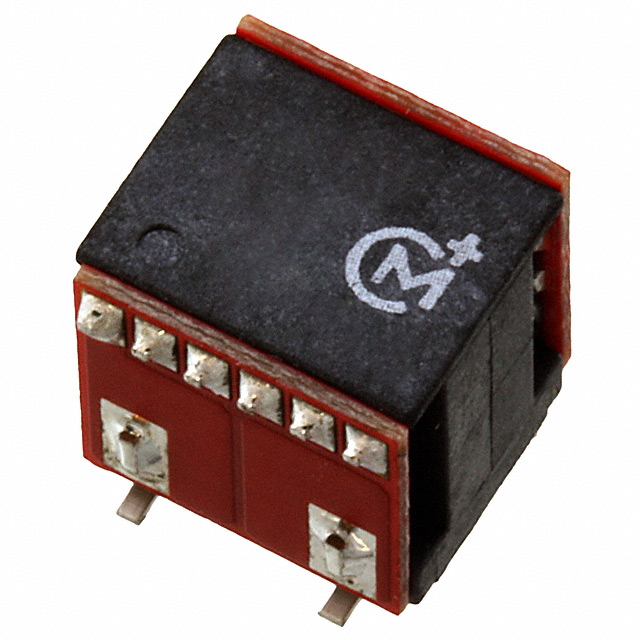

MTU1S0305MC-R

Active

Murata Power Solutions Inc.

DC DC CONVERTER 5V 1W

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

DC DC CONVERTER 5V 1W

Technical Specifications

Parameters and characteristics commom to parts in this series

DC DC CONVERTER 5V 1W

Part	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Max) [Max]	Mounting Type	Number of Outputs	Type	Package / Case	Voltage - Output 1	Applications	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Efficiency	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]
Murata Power Solutions Inc. MTU1S0305MC-R	1000 V	85 °C	-40 °C	3.63 V	Surface Mount	1	Isolated Module	5-SMD Module	5 V	ITE (Commercial)	8.2 mm	0.34 in	8.5 mm	8.4 mm	0.32 in	0.33 in	81 %	200 mA	2.97 V
Murata Power Solutions Inc. MTU1S0305MC	1000 V	85 °C	-40 °C	3.63 V	Surface Mount	1	Isolated Module	5-SMD Module	5 V	ITE (Commercial)	8.2 mm	0.34 in	8.5 mm	8.4 mm	0.32 in	0.33 in	81 %	200 mA	2.97 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 1 Output 5V 200mA 2.97V - 3.63V Input
