855-501/150-000
ActiveWAGO Corporation
CURRENT AND VOLTAGE TAP UP TO 50 MM
855-501/150-000
ActiveWAGO Corporation
CURRENT AND VOLTAGE TAP UP TO 50 MM
Description
General part information

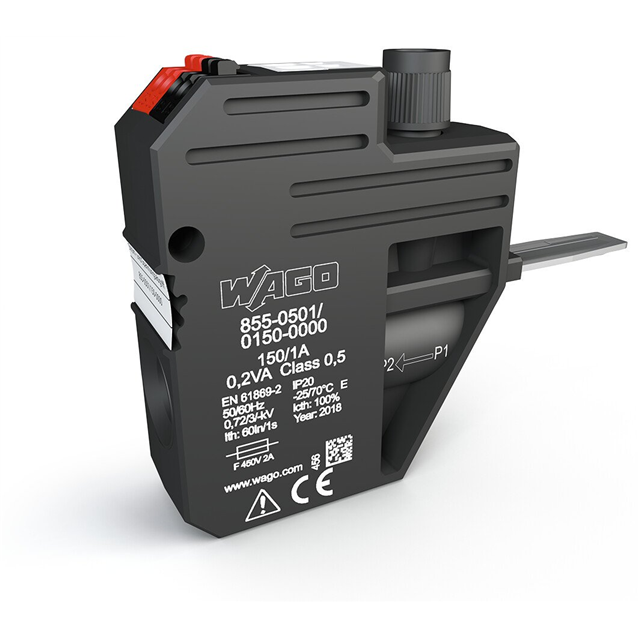

855-501/150-000
150 A Current Sense Transformer 50Hz ~ 60Hz Chassis Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 855-501/150-000 |
|---|---|
| Current Rating | 150 A |
| Frequency Range (Max) | 60 Hz |
| Frequency Range (Min) | 50 Hz |
| Height - Seated (Max) | 2.677 in |
| Mounting Type | Chassis Mount |
| Size / Dimension Length | 2.244 in |
| Size / Dimension Width | 0.787 in |
| Termination Style | Terminal Block |
| Type | Non-Invasive (Solid Core) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
