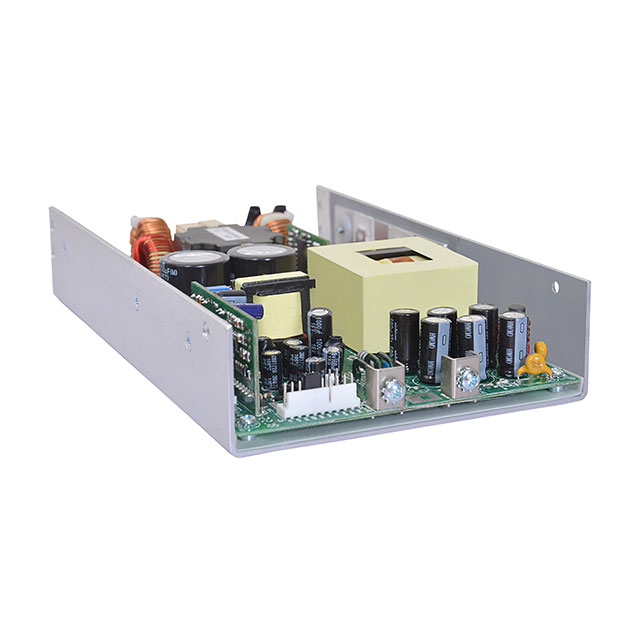

ACC600-1T12

Active

Bel Power Solutions

POWER SUPPLY, AC-DC, 12V, 25A

Search across all available documentation for this part.

Active

Bel Power Solutions

POWER SUPPLY, AC-DC, 12V, 25A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Open Frame AC DC Converters 1 Output 12V 85 ~ 264 VAC, 120 ~ 390 VDC Input

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	ACC600-1T12	ACC600 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CE, NEMKO	CE, NEMKO
Current - Output 1	25 A	12.5 - 25 A
Efficiency	93 %	93 %
Features	Load Sharing, PFC, Adjustable Output, Remote On/Off, Universal Input, Remote Sense, Standby Output	Load Sharing, PFC, Adjustable Output, Remote On/Off, Universal Input, Remote Sense, Standby Output
Minimum Load Required	False	False
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1
Power (Watts)	300 W	300 - 600 W
Size / Dimension [x]	216 mm	216 mm
Size / Dimension [x]	8.5 in	8.5 in
Size / Dimension [y]	127 mm	127 mm
Size / Dimension [y]	5 "	5 "
Size / Dimension [z]	41 mm	41 mm
Size / Dimension [z]	1.61 "	1.61 "
Type	Open Frame	Open Frame
Voltage - Input [Max]	264 VAC, 390 VDC	264 - 390 VAC
Voltage - Input [Min]	120 VDC, 85 VAC	85 - 120 VDC
Voltage - Isolation	4000 V	4000 V
Voltage - Output 1	12 V	12 - 48 V

AC/DC POWER SUPPLY SINGLE-OUT 24V 25A 600W 17-PIN

Part	Applications	Features	Type	Voltage - Isolation	Power (Watts)	Approval Agency	Number of Outputs	Efficiency	Mounting Type	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Current - Output 1	Voltage - Output 1	Voltage - Input [Min]	Voltage - Input [Max]
Bel Power Solutions ACC600-1T24	ITE (Commercial)	Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input	Open Frame	4000 V	600 W	CE, NEMKO	1	93 %	Chassis Mount	216 mm	41 mm	1.61 "	127 mm	8.5 in	5 "	25 A	24 V	85 VAC, 120 VDC	264 VAC, 390 VDC
Bel Power Solutions ACC600-1T12	ITE (Commercial)	Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input	Open Frame	4000 V	300 W	CE, NEMKO	1	93 %	Chassis Mount	216 mm	41 mm	1.61 "	127 mm	8.5 in	5 "	25 A	12 V	85 VAC, 120 VDC	264 VAC, 390 VDC
Bel Power Solutions ACC600-1T48	ITE (Commercial)	Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input	Open Frame	4000 V	600 W	CE, NEMKO	1	93 %	Chassis Mount	216 mm	41 mm	1.61 "	127 mm	8.5 in	5 "	12.5 A	48 V	85 VAC, 120 VDC	264 VAC, 390 VDC
