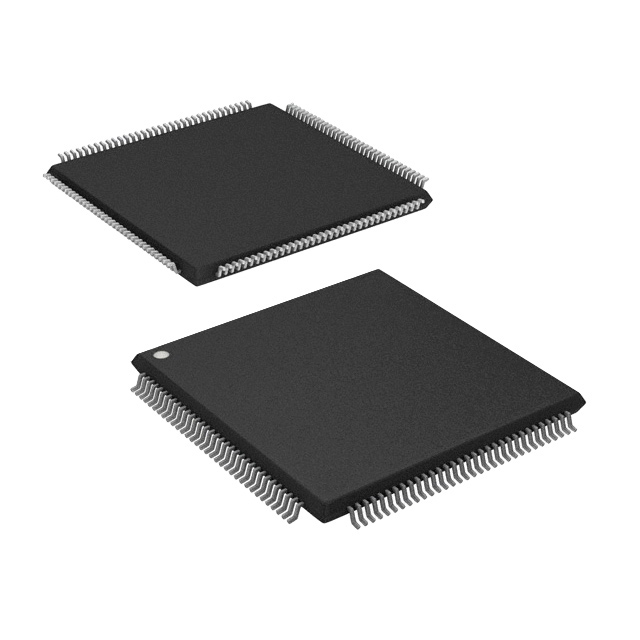

KSZ8895MLXI

KSZ8895MLXI

Active
Microchip Technology

5-PORT 10/100 MANAGED SWITCH W/ MII, RMII 128 LQFP 14X14X1.4MM TRAY ROHS COMPLIANT: YES

Find alt
KSZ8895MLXI

KSZ8895MLXI

Active
Microchip Technology

5-PORT 10/100 MANAGED SWITCH W/ MII, RMII 128 LQFP 14X14X1.4MM TRAY ROHS COMPLIANT: YES

Find alt

Description

General part information

KSZ8895 Series

The KSZ8895MQX/RQX/FQX/ML is a highly-integrated, Layer 2 managed, five-port switch with numerous features designed to reduce system cost. The KSZ8895 is Automotive qualified (AEC-Q100).

The KSZ8895 family was designed to be used in for cost sensitive 10/100Mbps five-port switch systems with low power requirements. Combining on-chip termination and internal LDO regulator help minimize system cost. The KSZ8895 family supports high-performance memory bandwidth and shared memory-based switch fabric with non-blocking configuration.

The KSZ8895 family also includes an extensive feature set, including: power management, programmable rate limit and priority ratio, tag/port-based VLAN, packets filtering, four queue QoS prioritization, management interfaces, and MIB counters.

Technical Specifications

Parameters and characteristics for this part

SpecificationKSZ8895MLXI
Current - Supply107 mA
FunctionSwitch
InterfaceMII
Operating Temperature (Max)85 °C
Operating Temperature (Min)-40 °C
Package / Case128-LQFP
Package Length14 mm
Package Name128-LQFP
Package Width14 mm
ProtocolEthernet
Standards10/100 Base-T/TX PHY, IEEE 802.3
Voltage - Supply (Range 1 Maximum)1.32 V
Voltage - Supply (Range 1 Minimum)1.14 V
Voltage - Supply (Range 2 Maximum)1.89 V
Voltage - Supply (Range 2 Minimum)1.71 V
Voltage - Supply (Range 3 Maximum)2.625 V
Voltage - Supply (Range 3 Minimum)2.375 V
