CGR222U030R1N
ActiveCornell Dubilier Knowles

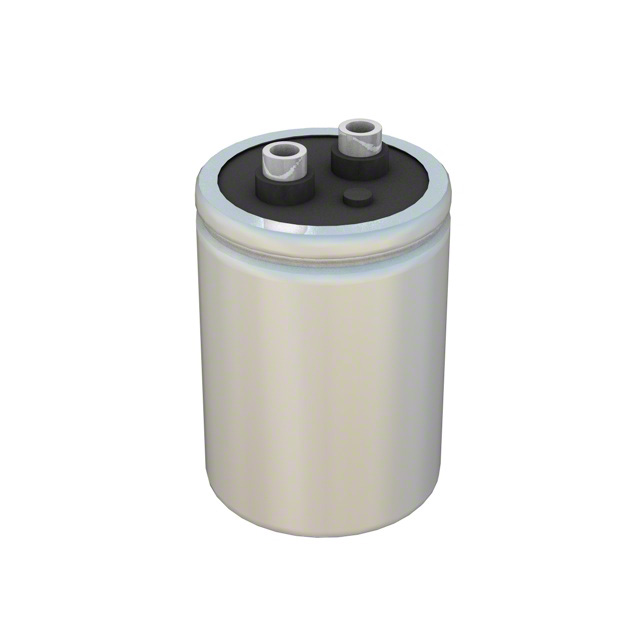

CAP ALUM 2200UF 30V SCREW CHAS M
CGR222U030R1N
ActiveCornell Dubilier Knowles
CAP ALUM 2200UF 30V SCREW CHAS M
Description
General part information
CGR222U030R1N
2200 µF 30 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 35mOhm @ 120Hz 2000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | CGR222U030R1N |
|---|---|
| Applications | General Purpose |
| Capacitance | 2200 ĄF |
| ESR (Equivalent Series Resistance) | 35 mOhm |
| Height - Seated (Max) | 1.875 in |
| Lifetime | 2000 Hrs |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can - Screw Terminals, Radial |
| Polarization | Polar |
| Ripple Current | 5.9 A, 6.785 A |
| Size / Dimension Diameter | 1.375 in |
| Tolerance (Negative) | 10 % |
| Tolerance (Positive) | 75 % |
| Voltage - Rated | 30 VAC |
