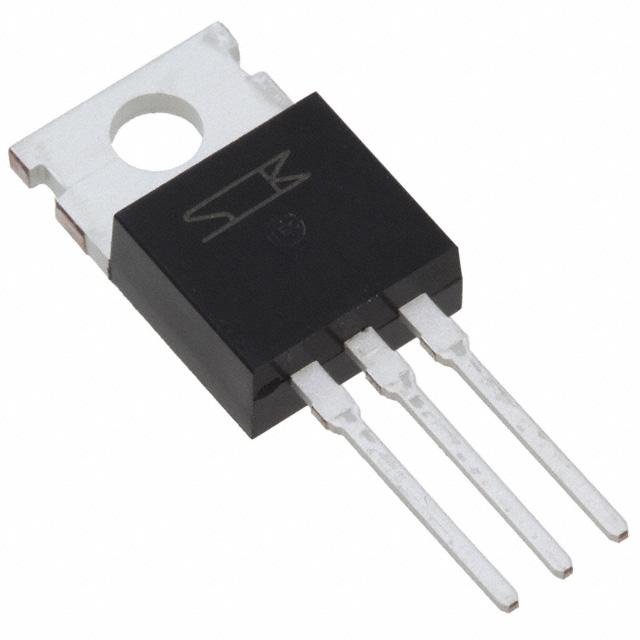

TMA166G-L

Obsolete

Sanken Electric USA Inc.

TRIAC 600V 16A TO220-3

Search across all available documentation for this part.

Obsolete

Sanken Electric USA Inc.

TRIAC 600V 16A TO220-3

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TMA166G-L	TMA166 Series

Configuration	Single	Single
Current - Gate Trigger (Igt) (Max) [Max]	30 mA	30 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	168 A, 160 A	160 - 168 A
Current - Non Rep. Surge 50, 60Hz (Itsm)	-	180 A
Current - Non Rep. Surge 50, 60Hz (Itsm)	-	190 A
Current - On State (It (RMS)) (Max)	16 A	16 A
Mounting Type	Through Hole	Through Hole
Operating Temperature [Max]	125 ¯C	125 ¯C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	TO-220-3	TO-3P-3 Full Pack, TO-220-3, TO-220-3 Full Pack
Supplier Device Package	TO-220-3	TO-3P, TO-220-3, TO-3PF, TO-220F
Triac Type	Standard	Standard
Voltage - Gate Trigger (Vgt) (Max) [Max]	1.5 V	1.5 V
Voltage - Off State	600 V	600 V

TRIAC 600V 16A TO3P

Part	Package / Case	Configuration	Voltage - Off State	Current - On State (It (RMS)) (Max)	Current - Gate Trigger (Igt) (Max) [Max]	Triac Type	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Mounting Type	Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]	Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]	Voltage - Gate Trigger (Vgt) (Max) [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm)
Sanken Electric USA Inc. TMA166P-L	TO-3P-3 Full Pack	Single	600 V	16 A	30 mA	Standard	-40 °C	125 ¯C	TO-3P	Through Hole	180 A	190 A	1.5 V
Sanken Electric USA Inc. TMA166G-L	TO-220-3	Single	600 V	16 A	30 mA	Standard	-40 °C	125 ¯C	TO-220-3	Through Hole			1.5 V	160 A, 168 A
Sanken Electric USA Inc. TMA166B-L	TO-3P-3 Full Pack	Single	600 V	16 A	30 mA	Standard	-40 °C	125 ¯C	TO-3PF	Through Hole	180 A	190 A	1.5 V
Sanken Electric USA Inc. TMA166S-L	TO-220-3 Full Pack	Single	600 V	16 A	30 mA	Standard	-40 °C	125 ¯C	TO-220F	Through Hole			1.5 V	160 A, 168 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

TRIAC Standard 600 V 16 A Through Hole TO-220-3
