9876 0601000

Active

Belden Inc.

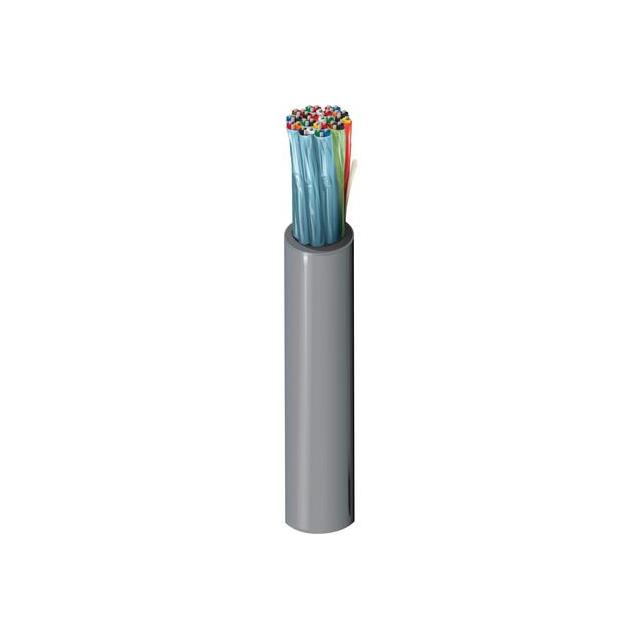

MULTI-PAIR 22COND 20AWG

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 22COND 20AWG

Technical Specifications

Parameters and characteristics for this part

Specification	9876 0601000

Cable Type	Multi-Pair
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	28
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.6 in
Jacket (Insulation) Diameter [diameter]	15.24 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.27 mm
Jacket (Insulation) Thickness	0.05 in
Jacket Color	Chrome
Length	1000 ft
Length	304.8 m
Number of Conductors	22
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2919
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Audio, Instrumentation, Control
Wire Gauge	20 AWG

Part	Shield Type	Jacket Color	Shield Coverage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Material	Usage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Length	Length	Shield Material	Number of Conductors	Wire Gauge	Cable Type	Features	Jacket (Insulation) Material	Conductor Insulation	Conductor Strand [custom]	Conductor Strand [custom]	Ratings
Belden Inc. 9876 0601000	Foil	Chrome	100 %	0.6 in	15.24 mm	Copper Tinned	Audio Control Instrumentation	1.27 mm	0.05 in	-20 C	80 C	1000 ft	304.8 m	Aluminum	22	20 AWG	Multi-Pair	Drain Wire	Poly-Vinyl Chloride (PVC)	Polypropylene (PP)	28	7	UL Style 2919

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

22 (11 Pair Twisted) Conductor Multi-Pair Cable Chrome 20 AWG Foil 1000.0' (304.8m)
