9L28010 008H100

Active

Belden Inc.

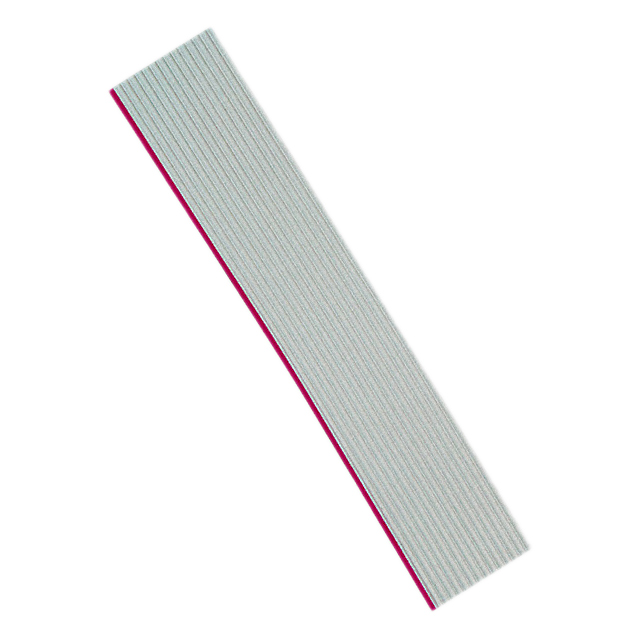

RIBBON CABLE, FLAT, UNSHIELDED, 10 CONDUCTOR, 28 AWG, 100 FT, 30.48 M

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

9L28010 008H100

Active

Belden Inc.

RIBBON CABLE, FLAT, UNSHIELDED, 10 CONDUCTOR, 28 AWG, 100 FT, 30.48 M

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	9L28010 008H100

Cable Type	Flat Cable
Conductor Material	Copper
Conductor Strand [custom]	7
Conductor Strand [custom]	36 AWG
Current Rating (Amps)	1 A
First Conductor Mark	Red
Insulation Resistance	10 GOhm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length [x]	100 ft
Length [x]	30.48 m
Number of Conductors	10
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Ribbon Thickness	0.89 mm
Ribbon Thickness	0.035 in
Ribbon Width [custom]	0.5 "
Ribbon Width [custom]	12.7 mm
Shielding	Unshielded
Voltage	300 V
Wire Gauge	28 AWG

9L28010 Series

Part	Length [x]	Length [x]	First Conductor Mark	Voltage	Ribbon Width [custom]	Ribbon Width [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Conductor Material	Pitch [x]	Pitch [x]	Shielding	Cable Type	Jacket Color	Ribbon Thickness	Ribbon Thickness	Wire Gauge	Number of Conductors	Insulation Resistance	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Material
Belden Inc. 9L28010 008H100	100 ft	30.48 m	Red	300 V	0.5 "	12.7 mm	-40 °C	105 ░C	1 A	Copper	0.05 in	1.27 mm	Unshielded	Flat Cable	Gray	0.89 mm	0.035 in	28 AWG	10	10 GOhm	7	36 AWG	Poly-Vinyl Chloride (PVC)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 242.69
		2	$ 219.78
		3	$ 207.41
		5	$ 192.84
		7	$ 183.84
		10	$ 174.78
		25	$ 153.66
		50	$ 139.57
Newark	Spool of 100	1	$ 172.53
		5	$ 165.86
		10	$ 160.14

Description

General part information

9L28010 Series

The 9L28010 008H100 is a 100ft 10-conductor flat Ribbon Cable with 28AWG (7 x 36) tinned copper conductor and PVC insulation. This ribbon cable is designed for general purpose electronic interconnect applications. The cable provides reliable mass-termination to standard IDC connectors. The simplicity of flat cable design, with its parallel conductor geometry, eliminates many of the common sources of wiring error and malfunction. Registration of the conductors is one-to-one with the terminating connector or board so that proper contact assignment is almost automatic. Flat cables also fold and bend readily, conforming to the mounting area and they fasten easily with clamps, adhesive or double-faced tape. Since the conductors are visible and in a fixed position within the dielectric coding, inspection and circuit tracing are simplified.
