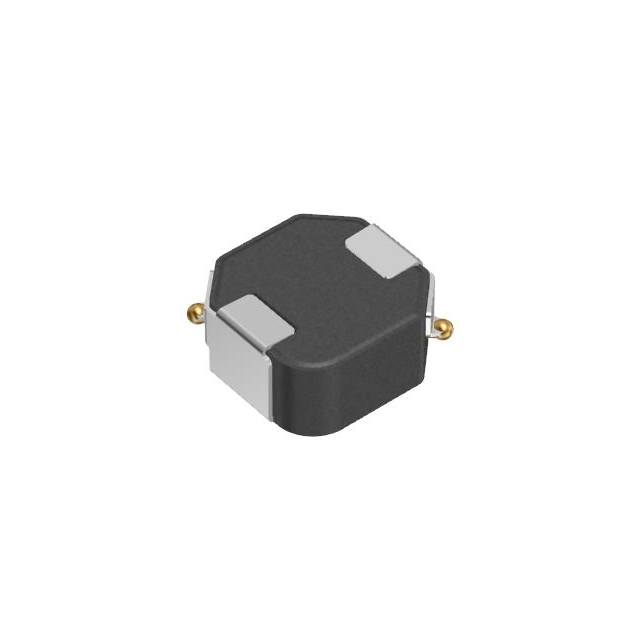

SPM4020T-R47M-DZ
470 nH Shielded Drum Core, Wirewound Inductor 7.8 A 11.6mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | SPM4020T-R47M-DZ |
|---|---|
| Current - Saturation (Isat) | 16.7 A |
| Current Rating | 7.8 A |
| DC Resistance (DCR) (Max) | 11.6 mOhm |
| Height - Seated (Max) | 0.079 in |
| Inductance | 470 nH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Metal Composite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Nonstandard |
| Ratings | AEC-Q200 |
| Shielding | Shielded |
| Size / Dimension Length | 0.169 in |
| Size / Dimension Width | 0.161 in |
| Tolerance | 20 % |
| Type | Drum Core, Wirewound |
