TX16/9.6/6.3-3E10-M
ActiveFerroxcube
FERRITE CORE TOROID

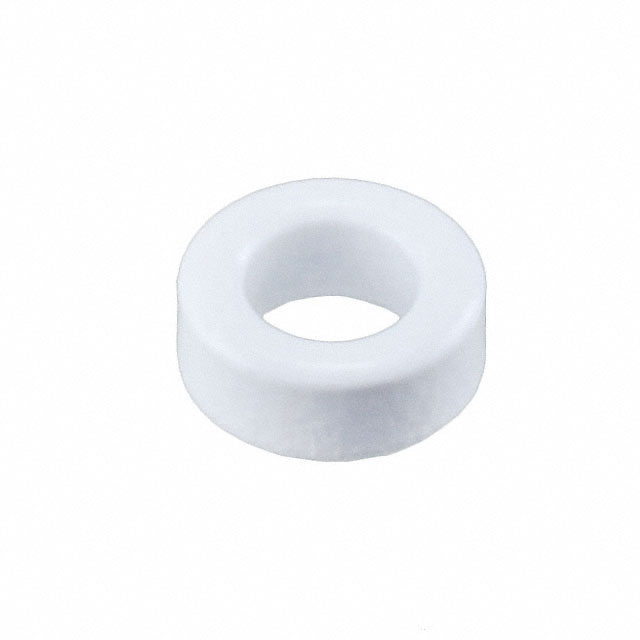

TX16/9.6/6.3-3E10-M
ActiveFerroxcube
FERRITE CORE TOROID
Description
General part information
TX16/9.6/6.3-3E10-M
Epoxy Ferrite Core Toroid Type Length Width 0.640" (16.25mm) Diameter 0.258" (6.55mm) Height
Technical Specifications
Parameters and characteristics for this part
| Specification | TX16/9.6/6.3-3E10-M |
|---|---|
| Core Factor (ΣI/A) | 1.95 mm⁻² |
| Core Factor (ΣI/A) mm⁻¹ | 1.95 mm⁻¹ |
| Core Type | Toroid |
| Diameter | 0.64 in |
| Effective Area (Ae) | 19.7 mm² |
| Effective Length (le) | 38.5 mm |
| Effective Magnetic Volume (Ve) | 760 mm³ |
| Finish | Epoxy |
| Gap | Ungapped |
| Height | 0.258 in |
| Package Height | 6.3 mm |
| Package Length | 16 mm |
| Package Name | TX |
| Package Width | 9.6 mm |
| Tolerance | 30 % |
