35RASMT4BHNTRX

Active

Switchcraft Inc.

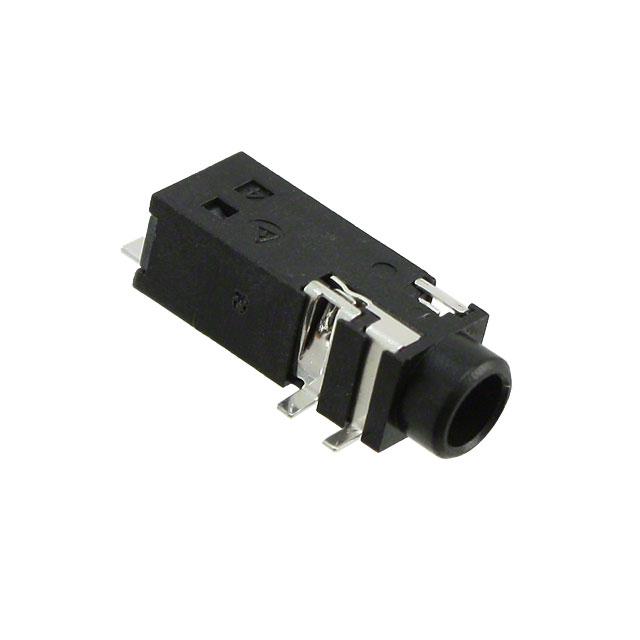

CONN JACK STEREO 3.5MM SMD R/A

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN JACK STEREO 3.5MM SMD R/A

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	35RASMT4BHNTRX	35RASM Series

Actual Diameter [diameter]	0.142 in	0.142 in
Actual Diameter [diameter]	3.6 mm	3.6 mm
Body Color	Black	Black
Connector Type	Phone Jack	Phone Jack
Contact Material	Copper Alloy	Copper Alloy
Contact Material - Plating [custom]	Silver	Silver
Current Rating (Amps)	3 A	3 A
Features	Board Guide	Board Guide
Gender	Female	Female
Housing Material	Thermoplastic	Thermoplastic
Industry Recognized Mating Diameter	0.141 "	0.141 "
Industry Recognized Mating Diameter	0.125 "	0.125 "
Industry Recognized Mating Diameter	3.5 mm	3.5 mm
Internal Switch(s)	Two Switches	Two Switches, Single Switch
Mounting Type	Surface Mount, Right Angle	Surface Mount, Right Angle
Number of Positions/Contacts	-	2 - 3 Conductors
Number of Positions/Contacts [custom]	3	3
Number of Positions/Contacts [custom]	5	4 - 5
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 °C
Shielding	Unshielded	Unshielded
Signal Lines	Stereo	Stereo, Mono
Termination	Solder	Solder
Voltage - Rated	250 VAC	250 VAC

CONN JACK STEREO 3.5MM SMD R/A

Part	Contact Material - Plating [custom]	Housing Material	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Contact Material	Voltage - Rated	Current Rating (Amps)	Termination	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Connector Type	Internal Switch(s)	Body Color	Signal Lines	Actual Diameter [diameter]	Actual Diameter [diameter]	Features	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Shielding	Gender	Number of Positions/Contacts
Switchcraft Inc. 35RASMT4BHNTRX	Silver	Thermoplastic	3	5	Copper Alloy	250 VAC	3 A	Solder	0.141 "	0.125 "	3.5 mm	Phone Jack	Two Switches	Black	Stereo	0.142 in	3.6 mm	Board Guide	-25 °C	85 °C	Surface Mount, Right Angle	Unshielded	Female
Switchcraft Inc. 35RASMT2AHNTRX		Thermoplastic			Copper Alloy	250 VAC	3 A	Solder	0.141 "	0.125 "	3.5 mm	Phone Jack	Single Switch	Black	Mono	0.142 in	3.6 mm	Board Guide	-25 °C	85 °C	Surface Mount, Right Angle	Unshielded	Female	2 Conductors, 3 Conductors
Switchcraft Inc. 35RASMT3BHNTRX	Silver	Thermoplastic	3	4	Copper Alloy	250 VAC	3 A	Solder	0.141 "	0.125 "	3.5 mm	Phone Jack	Single Switch	Black	Stereo	0.142 in	3.6 mm	Board Guide	-25 °C	85 °C	Surface Mount, Right Angle	Unshielded	Female

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder
