SPK10-0.006-00-105

Active

Bergquist

THERM PAD 36.83X21.29MM BEIGE

Search across all available documentation for this part.

Active

Bergquist

THERM PAD 36.83X21.29MM BEIGE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

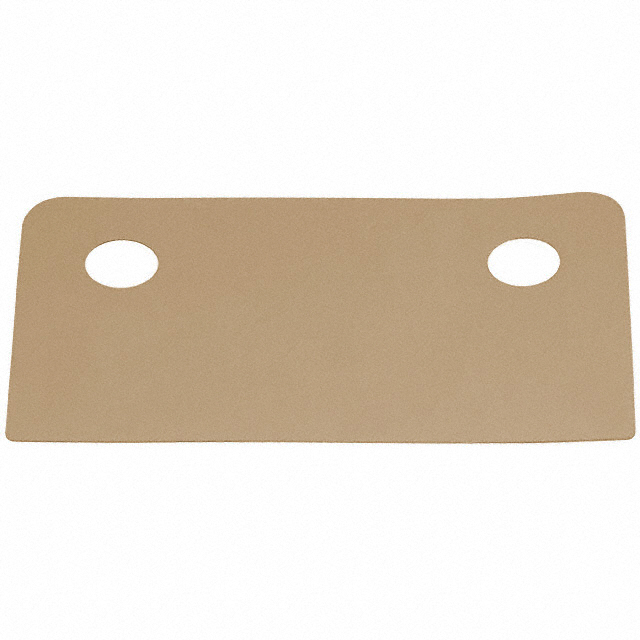

Thermal Pad Beige 36.83mm x 21.29mm Rectangular

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	SPK10-0.006-00-105	SPK10 Series

Adhesive	-	Adhesive - One Side
Backing, Carrier	Polyimide	Polyimide
Color	Beige	Beige
Material	Silicone Rubber	Silicone Rubber
Outline [x]	36.83 mm	17.45 - 304.8 mm
Outline [y]	21.29 mm	6.6 - 292.1 mm
Shape	Rectangular	Rectangular, Round, Rhombus
Shelf Life	-	12 Months
Shelf Life Start	-	Date of Manufacture
Thermal Conductivity	1.3 W/m-K	1.3 W/m-K
Thickness	0.152 mm	0.152 mm
Thickness	0.006 in	0.006 in
Usage	SIP	TO-220, DO-5, TO-220 Triple, TO-3, TO-66, TO-220 Dual, TO-218, TO-247, SIP

THERM PAD 17.45MMX14.27MM BEIGE

Part	Material	Shape	Backing, Carrier	Color	Thermal Conductivity	Usage	Outline [y]	Outline [x]	Thickness	Thickness	Shelf Life	Adhesive	Shelf Life Start
Bergquist SPK10-0.006-00-51	Silicone Rubber	Rectangular	Polyimide	Beige	1.3 W/m-K	TO-220	14.27 mm	17.45 mm	0.152 mm	0.006 in
Bergquist SPK10-0.006-00-25	Silicone Rubber	Round	Polyimide	Beige	1.3 W/m-K	DO-5	6.6 mm	25.4 mm	0.152 mm	0.006 in
Bergquist SPK10-0.006-00-36	Silicone Rubber	Rectangular	Polyimide	Beige	1.3 W/m-K	TO-220 Triple	19.05 mm	38.1 mm	0.152 mm	0.006 in
Bergquist SPK10-0.006-00-02	Silicone Rubber	Rhombus	Polyimide	Beige	1.3 W/m-K	TO-3	31.75 mm	45.21 mm	0.152 mm	0.006 in
Bergquist SPK10-0.006-00-86	Silicone Rubber	Rhombus	Polyimide	Beige	1.3 W/m-K	TO-3	26.67 mm	39.62 mm	0.152 mm	0.006 in
Bergquist SPK10-0.006-00-43	Silicone Rubber	Rectangular	Polyimide	Beige	1.3 W/m-K	TO-220	12.7 mm	19.05 mm	0.152 mm	0.006 in
Bergquist SPK10-0.006-AC-18	Silicone Rubber	Rhombus	Polyimide	Beige	1.3 W/m-K	TO-3	28.96 mm	39.7 mm	0.152 mm	0.006 in	12 Months	Adhesive - One Side	Date of Manufacture
Bergquist SPK10-0.006-00-58	Silicone Rubber	Rectangular	Polyimide	Beige	1.3 W/m-K	TO-220	12.7 mm	19.05 mm	0.152 mm	0.006 in	12 Months		Date of Manufacture
Bergquist SPK10-0.006-00-05	Silicone Rubber	Rhombus	Polyimide	Beige	1.3 W/m-K	TO-3	28.96 mm	41.91 mm	0.152 mm	0.006 in
Bergquist SPK10-0.006-00-11	Silicone Rubber	Rhombus	Polyimide	Beige	1.3 W/m-K	TO-66	19.35 mm	33.32 mm	0.152 mm	0.006 in
