RT-375-1/16-X-STK

Obsolete

TE Connectivity Raychem Cable Protection

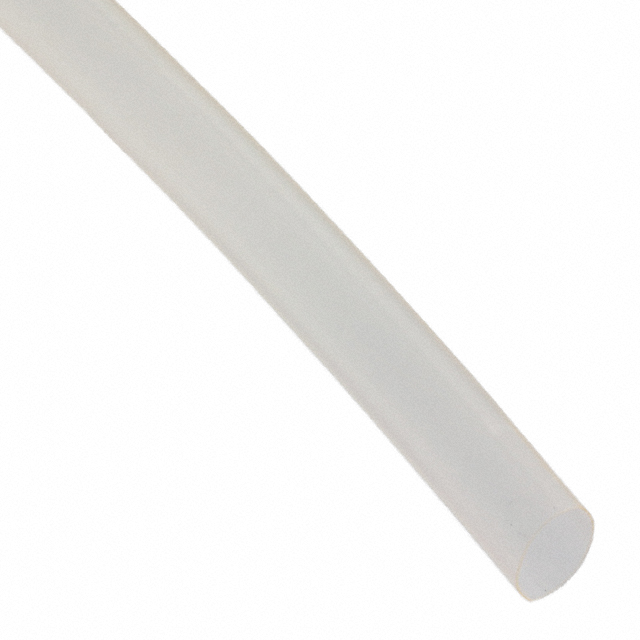

HEATSHRINK 1/16" X 4' CLEAR

Deep-Dive with AI

Search across all available documentation for this part.

RT-375-1/16-X-STK

Obsolete

TE Connectivity Raychem Cable Protection

HEATSHRINK 1/16" X 4' CLEAR

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RT-375-1/16-X-STK

Color	Clear
Features	Chemical Resistant, Flame Retardant
Inner Diameter - Recovered [diameter]	0.79 mm
Inner Diameter - Recovered [diameter]	0.031 in
Inner Diameter - Supplied [diameter]	0.063 in
Inner Diameter - Supplied [diameter]	1.6 mm
Length [x]	1.22 m
Length [x]	4 ft
Material	Fluoropolymer, Irradiated
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	0.01 in
Recovered Wall Thickness	0.25 mm
Shrink Temperature	125 °C
Shrinkage Ratio	2 to 1
Type	Tubing, Flexible

RT-375 Series

Part	Features	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Recovered Wall Thickness	Recovered Wall Thickness	Material	Operating Temperature [Min]	Operating Temperature [Max]	Length [x]	Length [x]	Type	Color	Shrink Temperature	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Shrinkage Ratio	Length	Length	Inner Diameter - Supplied [diameter]	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered	Inner Diameter - Recovered
TE Connectivity Raychem Cable Protection RT-375-2-X-SP	Chemical Resistant Flame Retardant	25.4 mm	1 in	0.02 in	0.51 mm	Fluoropolymer Irradiated	-55 °C	150 °C	30.5 m	100 ft	Tubing Flexible	Clear	125 °C	50.8 mm	2 in	2 to 1
TE Connectivity Raychem Cable Protection RT-375-3/8-X-STK	Chemical Resistant Flame Retardant	4.75 mm	0.187 in	0.012 in	0.3 mm	Fluoropolymer Irradiated	-55 °C	150 °C	1.22 m	4 ft	Tubing Flexible	Clear	125 °C	9.53 mm	0.375 in	2 to 1
TE Connectivity Raychem Cable Protection RT-375-3/32-X-SP	Chemical Resistant Flame Retardant	1.17 mm	0.046 in	0.01 in	0.25 mm	Fluoropolymer Irradiated	-55 °C	150 °C	30 m	98.4 ft	Tubing Flexible	Clear	125 °C	0.093 in		2 to 1	10 m 150 m	32.8 ' 492.1 ft	2.36 mm
TE Connectivity Raychem Cable Protection RT-375-1/2-X-SP	Chemical Resistant Flame Retardant	6.35 mm	0.25 in	0.012 in	0.3 mm	Fluoropolymer Irradiated	-55 °C	150 °C			Tubing Flexible	Clear	125 °C	12.7 mm	0.5 in	2 to 1
TE Connectivity Raychem Cable Protection RT-375-3/32-X-STK	Chemical Resistant Flame Retardant	1.17 mm	0.046 in	0.01 in	0.25 mm	Fluoropolymer Irradiated	-55 °C	150 °C	1.22 m	4 ft	Tubing Flexible	Clear	125 °C	0.093 in		2 to 1			2.36 mm
TE Connectivity Raychem Cable Protection RT-375-1/2-X-STK	Chemical Resistant Flame Retardant	6.35 mm	0.25 in	0.012 in	0.3 mm	Fluoropolymer Irradiated	-55 °C	150 °C	1.22 m	4 ft	Tubing Flexible	Clear	125 °C	12.7 mm	0.5 in	2 to 1
TE Connectivity Raychem Cable Protection RT-375-3/4-X-SP	Chemical Resistant Flame Retardant	9.53 mm	0.375 in	0.017 in	0.43 mm	Fluoropolymer Irradiated	-55 °C	150 °C			Tubing Flexible	Clear	125 °C			2 to 1	75 m 76.2 m	246.1 ft 3000 "
TE Connectivity Raychem Cable Protection RT-375-3/64-X-SP	Chemical Resistant Flame Retardant	0.023 in		0.01 in	0.25 mm	Fluoropolymer Irradiated	-55 °C	150 °C			Tubing Flexible	Clear	125 °C	1.17 mm	0.046 in	2 to 1				0.58 mm
TE Connectivity Raychem Cable Protection RT-375-1/16-X-STK	Chemical Resistant Flame Retardant	0.79 mm	0.031 in	0.01 in	0.25 mm	Fluoropolymer Irradiated	-55 °C	150 °C	1.22 m	4 ft	Tubing Flexible	Clear	125 °C	1.6 mm	0.063 in	2 to 1
TE Connectivity Raychem Cable Protection RT-375-3/16-X-STK	Chemical Resistant Flame Retardant			0.01 in	0.25 mm	Fluoropolymer Irradiated	-55 °C	150 °C	1.22 m	4 ft	Tubing Flexible	Clear	125 °C	4.75 mm	0.187 in	2 to 1					2.36 mm	0.093 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

RT-375 Series

Heat Shrink Tubing, Flexible 0.063" (1.60mm) 2 to 1 Clear 4.00' (1.22m)

Documents

Technical documentation and resources

No documents available
