HF365/20 100

Active

CBL RIBN 20COND 0.05 GRAY 5'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HF365/20 100

Active

CBL RIBN 20COND 0.05 GRAY 5'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.40
		1	$ 42.06
		5	$ 9.44
		5	$ 34.69
		10	$ 31.78
		10	$ 8.70
		25	$ 7.81
		25	$ 28.40
		50	$ 7.19
		50	$ 26.10
		100	$ 23.79
		100	$ 6.61

Description

General part information

HF365 Series

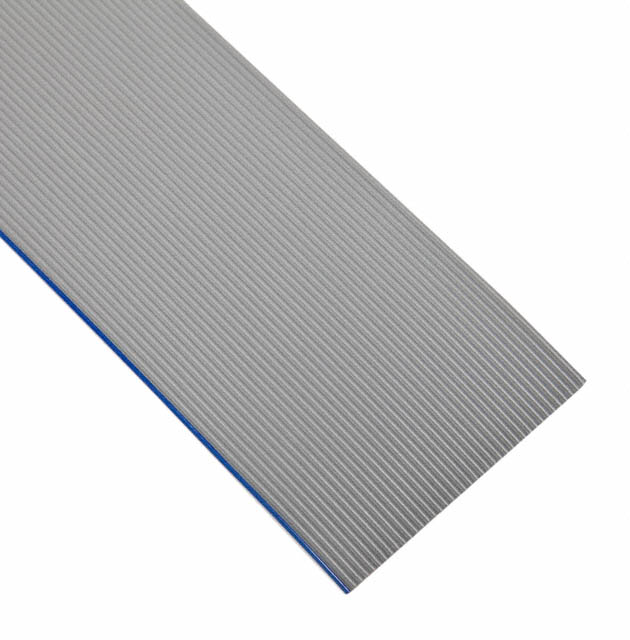

Flat Ribbon Cable Gray 20 Conductors 0.050" (1.27mm) Flat Cable 5.0' (1.52m)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HF365/20 100	HF365 Series

Cable Type	Flat Cable	Flat Cable
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	7	7
Conductor Strand [custom]	36 AWG	36 AWG
Features	Zippable	Zippable, Splice Free
First Conductor Mark	Blue	Blue
Insulation Resistance	10 GOhm	10 GOhm
Jacket (Insulation) Material	Polyolefin (PO)	Polyolefin (PO)
Jacket Color	Gray	Gray
Length	25 ft	1 - 300 ft
Length	7.62 m	7.62 - 304.8 m
Length	-	10 - 100 ft
Length	-	3.05 - 30.48 m
Number of Conductors	20	4 - 64
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	0.05 in	0.05 in
Pitch [x]	1.27 mm	1.27 mm
Ratings	UL Style 21682	UL Style 21682
Ribbon Thickness	0.89 mm	0.89 mm
Ribbon Thickness	0.035 in	0.035 in
Ribbon Width	1 in	1 - 76.2 mm
Ribbon Width	25.4 mm	25.4 mm
Ribbon Width	-	0.7 - 1.25 in
Ribbon Width	-	17.78 - 31.75 mm
Ribbon Width	-	0.2 - 3 in
Ribbon Width	-	20.32 - 81.28 mm
Ribbon Width	-	0.8 - 3.2 in
Ribbon Width	-	0.5 "
Ribbon Width	-	12.7 mm
Shielding	Unshielded	Unshielded
Voltage	300 V	300 V
Wire Gauge	28 AWG	28 AWG

HF365 Series

FLAT CABLE POLYOLEFIN 14CONDUCTORS 28AWG 300V GRAY BOX

Part	Voltage	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Strand [custom]	Conductor Strand [custom]	Cable Type	Pitch [x]	Pitch [x]	Ribbon Thickness	Ribbon Thickness	Wire Gauge	Number of Conductors	Ratings	First Conductor Mark	Jacket Color	Features	Conductor Material	Jacket (Insulation) Material	Insulation Resistance	Ribbon Width [x]	Ribbon Width [x]	Length [x]	Length [x]	Length	Length	Ribbon Width	Ribbon Width	Ribbon Width [y]	Ribbon Width [y]	Ribbon Width [custom]	Ribbon Width [custom]
3M HF365/14	300 V	Unshielded	-40 °C	105 ░C	7	36 AWG	Flat Cable	0.05 in	1.27 mm	0.89 mm	0.035 in	28 AWG	14	UL Style 21682	Blue	Gray	Zippable	Copper, Tinned	Polyolefin (PO)	10 GOhm	0.7 in	17.78 mm	100 ft	30.48 m
3M HF365/14 300	300 V	Unshielded	-40 °C	105 ░C	7	36 AWG	Flat Cable	0.05 in	1.27 mm	0.89 mm	0.035 in	28 AWG	14	UL Style 21682	Blue	Gray	Zippable	Copper, Tinned	Polyolefin (PO)	10 GOhm	0.7 in	17.78 mm			91.44 m	300 ft
3M HF365/12SF	300 V	Unshielded	-40 °C	105 ░C	7	36 AWG	Flat Cable	0.05 in	1.27 mm	0.89 mm	0.035 in	28 AWG	12	UL Style 21682	Blue	Gray	Splice Free, Zippable	Copper, Tinned	Polyolefin (PO)	10 GOhm			10 ft	3.05 m	304.8 mm	1 ft	15.24 mm	0.6 in
3M HF365/08SF	300 V	Unshielded	-40 °C	105 ░C	7	36 AWG	Flat Cable	0.05 in	1.27 mm	0.89 mm	0.035 in	28 AWG	8	UL Style 21682	Blue	Gray	Splice Free, Zippable	Copper, Tinned	Polyolefin (PO)	10 GOhm			10 ft, 100 ft	3.05 m, 30.48 m	15.24 m	50 ft	10.2 mm	0.402 in
3M HF365/64	300 V	Unshielded	-40 °C	105 ░C	7	36 AWG	Flat Cable	0.05 in	1.27 mm	0.89 mm	0.035 in	28 AWG	64	UL Style 21682	Blue	Gray	Zippable	Copper, Tinned	Polyolefin (PO)	10 GOhm			100 ft	30.48 m					81.28 mm	3.2 in
3M HF365/64SF	300 V	Unshielded	-40 °C	105 ░C	7	36 AWG	Flat Cable	0.05 in	1.27 mm	0.89 mm	0.035 in	28 AWG	64	UL Style 21682	Blue	Gray	Splice Free, Zippable	Copper, Tinned	Polyolefin (PO)	10 GOhm			10 ft	3.05 m	7.62 m, 304.8 mm	1 ft, 25 ft			81.28 mm	3.2 in
3M HF365/10 100	300 V	Unshielded	-40 °C	105 ░C	7	36 AWG	Flat Cable	0.05 in	1.27 mm	0.89 mm	0.035 in	28 AWG	10	UL Style 21682	Blue	Gray	Zippable	Copper, Tinned	Polyolefin (PO)	10 GOhm			10 ft	3.05 m	15.24 m, 304.8 mm	1 ft, 50 ft					0.5 "	12.7 mm
3M HF365/16SF	300 V	Unshielded	-40 °C	105 ░C	7	36 AWG	Flat Cable	0.05 in	1.27 mm	0.89 mm	0.035 in	28 AWG	16	UL Style 21682	Blue	Gray	Splice Free, Zippable	Copper, Tinned	Polyolefin (PO)	10 GOhm					15.24 m	50 ft			20.32 mm	0.8 in
3M HF365/34SF	300 V	Unshielded	-40 °C	105 ░C	7	36 AWG	Flat Cable	0.05 in	1.27 mm	0.89 mm	0.035 in	28 AWG	34	UL Style 21682	Blue	Gray	Splice Free, Zippable	Copper, Tinned	Polyolefin (PO)	10 GOhm			10 ft	3.05 m	15.24 m, 304.8 mm	1 ft, 50 ft			43.18 mm	1.7 in
3M HF365/50SF	300 V	Unshielded	-40 °C	105 ░C	7	36 AWG	Flat Cable	0.05 in	1.27 mm	0.89 mm	0.035 in	28 AWG	50	UL Style 21682	Blue	Gray	Splice Free, Zippable	Copper, Tinned	Polyolefin (PO)	10 GOhm			100 ft	30.48 m	7.62 m, 15.24 m, 304.8 mm	1 ft, 25 ft, 50 ft	63.5 mm	2.5 "
