1546B
ActiveKeystone Electronics

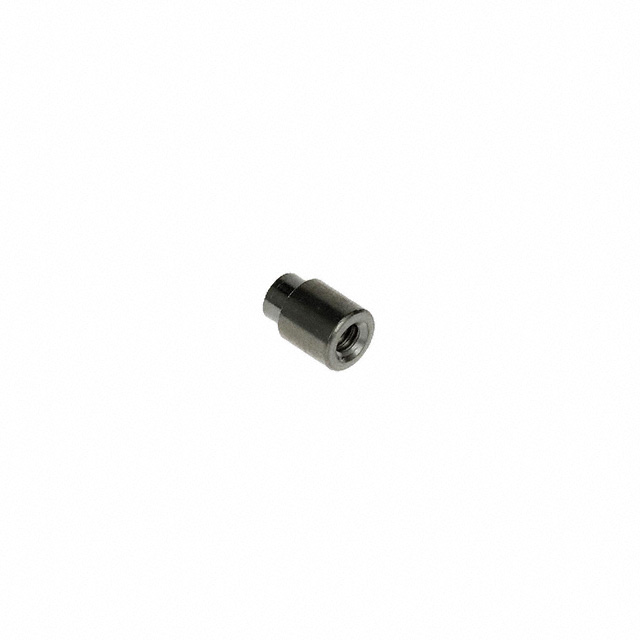

ROUND STANDOFF #6-32 BRASS 1/4"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1546B
ActiveKeystone Electronics
ROUND STANDOFF #6-32 BRASS 1/4"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1546B |
|---|---|
| Between Board Height | 6.35 mm |
| Between Board Height | 0.25 in |
| Between Board Height | 0.25 in |
| Diameter - Inside [diameter] | 0.15 " |
| Diameter - Inside [diameter] | 3.81 mm |
| Diameter - Outside [diameter] | 6.35 mm |
| Diameter - Outside [diameter] | 0.25 in |
| Diameter - Outside [diameter] | 0.25 in |
| Gender | Swage, Female |
| Length - Overall [x] | 0.39 in |
| Length - Overall [x] | 9.91 mm |
| Material | Brass |
| Plating | Nickel |
| Screw, Thread Size | #6-32 |
| Threaded/Unthreaded | Threaded |
| Type | Round Standoff |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.66 | |
| 25 | $ 0.56 | |||
| 100 | $ 0.47 | |||
| 250 | $ 0.44 | |||
| 500 | $ 0.41 | |||
| 1000 | $ 0.34 | |||
| 2500 | $ 0.31 | |||
Description
General part information
1546 Series
Round Standoff Threaded #6-32 Brass 0.250" (6.35mm) 1/4"
