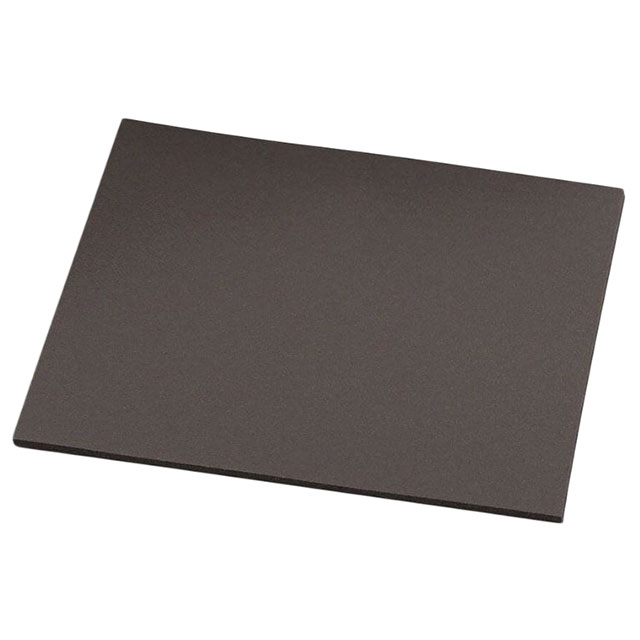

40-30-1020-6503
ActiveParker Chomerics
RF EMI SHIELDING SHEET 20" X 10"
Deep-Dive with AI
Search across all available documentation for this part.
40-30-1020-6503
ActiveParker Chomerics
RF EMI SHIELDING SHEET 20" X 10"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 40-30-1020-6503 | 40-30 Series |
|---|---|---|
| Length | 508 mm | 508 mm |
| Length | 20 in | 20 in |
| Operating Temperature | - | 66 °C |
| Operating Temperature | - | -29 °C |
| Shape | Sheet | Sheet |
| Thickness - Overall | 0.062 in | 0.062 in |
| Thickness - Overall | 1.57 mm | 1.57 mm |
| Type | Shielding Sheet | Shielding Sheet |
| Width [x] | 254 mm | 254 mm |
| Width [x] | 10 in | 10 in |
40-30 Series
RF EMI SHIELDING SHEET 20" X 10"
| Part | Width [x] | Width [x] | Shape | Length | Length | Type | Thickness - Overall | Thickness - Overall | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|
Parker Chomerics 40-30-1020-6502 | 254 mm | 10 in | Sheet | 508 mm | 20 in | Shielding Sheet | 0.062 in | 1.57 mm | ||
Parker Chomerics 40-30-1020-1285 | 254 mm | 10 in | Sheet | 508 mm | 20 in | Shielding Sheet | 0.062 in | 1.57 mm | ||
Parker Chomerics 40-30-1020-1298 | 254 mm | 10 in | Sheet | 508 mm | 20 in | Shielding Sheet | 0.062 in | 1.57 mm | 66 °C | -29 °C |
Parker Chomerics 40-30-1020-6503 | 254 mm | 10 in | Sheet | 508 mm | 20 in | Shielding Sheet | 0.062 in | 1.57 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1348.05 | |
Description
General part information
40-30 Series
RF EMI Shielding Sheet CHO-SEAL® 6503 Silicone Elastomer 10.000" (254.00mm) X 20.000" (508.00mm) X 0.062" (1.57mm)
