PI2EQX6814NJE
ObsoleteDiodes Inc
NRND = NOT RECOMMENDED FOR NEW DESIGN
PI2EQX6814NJE
ObsoleteDiodes Inc
NRND = NOT RECOMMENDED FOR NEW DESIGN
Description
General part information
PI2EQX6814 Series
The PI2EQX6814 is a 6.5Gbps low power, 4 lane (8 channel) SAS2, SATA, XAUI signal ReDriver. The device provides programmable equalization, amplification, and de-emphasis by either pin strapping or I²Ccontrol, select bits, to optimize performance over a variety of physical mediums by reducing Inter-symbol interference.
Technical Specifications
Parameters and characteristics for this part
| Specification | PI2EQX6814NJE |
|---|---|
| Applications | SAS, SATA |
| Data Rate (Max) | 6.5 Gbps |
| Input | CML |
| Mounting Type | Surface Mount |
| Number of Channels | 8 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output | CML |

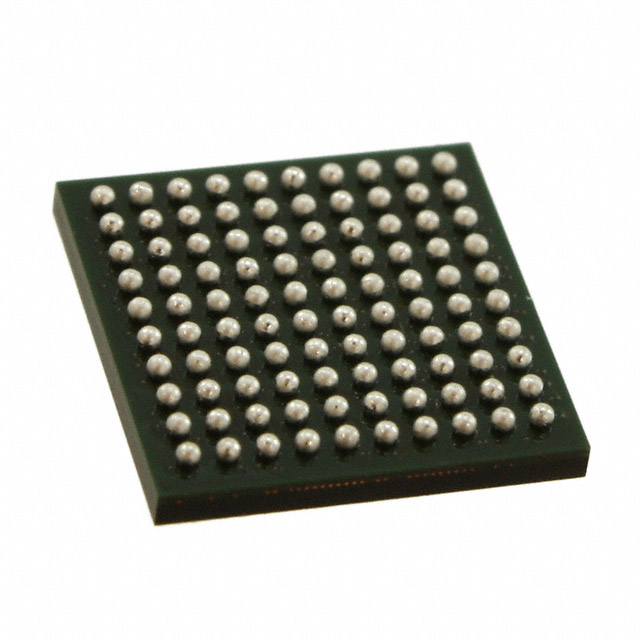

| Package / Case | 100-LBGA |
| Package Length | 11 mm |
| Package Name | 100-LBGA |
| Package Width | 11 mm |
| Signal Conditioning | Output De-Emphasis, Input Equalization |
| Type | ReDriver, Buffer |
| Voltage - Supply | 1.2 V |
