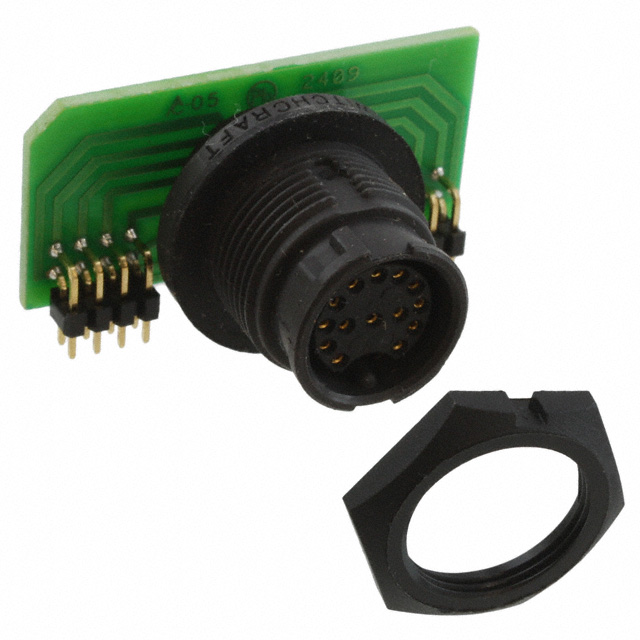

EN3P14FRAPCBW

Active

Switchcraft Inc.

CONN RCPT FMALE 14POS SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EN3P14FRAPCBW

Active

Switchcraft Inc.

CONN RCPT FMALE 14POS SOLDER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EN3P14FRAPCBW	EN3P14 Series

Applications	Instrumentation, Medical, General Purpose, Marine	Instrumentation, Medical, General Purpose, Marine
Color	Black	Black
Connector Type	Receptacle, Female Sockets	Receptacle, Male Pins, Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	2 A	2 - 3 A
Fastening Type	Bayonet Lock	Bayonet Lock
Ingress Protection	IP66/IP68	IP66/IP68
Insert Material	Elastomer	Elastomer
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount	Through Hole, Panel Mount, Right Angle
Number of Positions	14	14
Operating Temperature [Max]	65 °C	65 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Circuit Board, Solder	Solder, Circuit Board, Solder
Voltage Rating	250 VAC	250 VAC

EN3P14 Series

CONN RCPT MALE 14POS GOLD SOLDER

Part	Mounting Feature	Material Flammability Rating	Applications	Fastening Type	Mounting Type	Ingress Protection	Color	Shielding	Number of Positions	Connector Type	Insert Material	Primary Material	Current Rating (Amps)	Orientation	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Termination	Contact Finish - Mating
Switchcraft Inc. EN3P14M26PX	Bulkhead - Front Side Nut	UL94 V-0	General Purpose, Instrumentation, Marine, Medical	Bayonet Lock	Panel Mount, Through Hole	IP66/IP68	Black	Unshielded	14	Male Pins, Receptacle	Elastomer	Plastic	3 A	Keyed	Copper Alloy	65 °C	-40 °C	250 VAC	Solder	Gold
Switchcraft Inc. EN3P14FRAPCBN	Bulkhead - Front Side Nut	UL94 V-0	General Purpose, Instrumentation, Marine, Medical	Bayonet Lock	Panel Mount, Right Angle, Through Hole	IP66/IP68	Black	Unshielded	14	Receptacle, Female Sockets	Elastomer	Plastic	2 A	Keyed	Copper Alloy	65 °C	-40 °C	250 VAC	Circuit Board, Solder	Gold
Switchcraft Inc. EN3P14FRAPCBW	Bulkhead - Front Side Nut	UL94 V-0	General Purpose, Instrumentation, Marine, Medical	Bayonet Lock	Panel Mount, Right Angle, Through Hole	IP66/IP68	Black	Unshielded	14	Receptacle, Female Sockets	Elastomer	Plastic	2 A	Keyed	Copper Alloy	65 °C	-40 °C	250 VAC	Circuit Board, Solder	Gold
Switchcraft Inc. EN3P14F26SX	Bulkhead - Front Side Nut	UL94 V-0	General Purpose, Instrumentation, Marine, Medical	Bayonet Lock		IP66/IP68	Black	Unshielded	14	Receptacle, Female Sockets	Elastomer	Plastic	3 A	Keyed	Copper Alloy	65 °C	-40 °C	250 VAC		Gold
Switchcraft Inc. EN3P14M26SX	Bulkhead - Front Side Nut	UL94 V-0	General Purpose, Instrumentation, Marine, Medical	Bayonet Lock		IP66/IP68	Black	Unshielded	14	Male Pins, Receptacle	Elastomer	Plastic	3 A	Keyed	Copper Alloy	65 °C	-40 °C	250 VAC		Gold
Switchcraft Inc. EN3P14MRAPCBW	Bulkhead - Front Side Nut	UL94 V-0	General Purpose, Instrumentation, Marine, Medical	Bayonet Lock	Panel Mount, Right Angle, Through Hole	IP66/IP68	Black	Unshielded	14	Male Pins, Receptacle	Elastomer	Plastic	2 A	Keyed	Copper Alloy	65 °C	-40 °C	250 VAC	Circuit Board, Solder	Gold
Switchcraft Inc. EN3P14MRAPCBN	Bulkhead - Front Side Nut	UL94 V-0	General Purpose, Instrumentation, Marine, Medical	Bayonet Lock	Panel Mount, Right Angle, Through Hole	IP66/IP68	Black	Unshielded	14	Male Pins, Receptacle	Elastomer	Plastic	2 A	Keyed	Copper Alloy	65 °C	-40 °C	250 VAC	Circuit Board, Solder	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 20.60
		10	$ 19.60

Description

General part information

EN3P14 Series

14 Position Circular Connector Receptacle, Female Sockets Circuit Board, Solder
