Pluggable Terminal Blocks 3 Pos 5mm pitch Through Hole Header
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | 1923759 | MSTBA Series |
|---|---|---|
| Color | Green | Black, Green |
| Contact Mating Finish | Tin | Tin |
| Contact Tail Length | 3.5 mm | 3.5 mm |
| Contact Tail Length | 0.138 in | 0.138 in |
| Current - IEC | 16 A | 12 - 16 A |
| Current - UL | 16 A | 16 A |
| Features | - | Locking Ramp |
| Header Orientation | 90°, Right Angle | 90°, Right Angle |
| Housing Material | Polyamide (PA), Nylon | Polybutylene Terephthalate (PBT), Polyamide (PA), Nylon |
| Insulation Height | 8.61 mm | 8.61 mm |
| Insulation Height | 0.339 " | 0.339 " |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole |
| Number of Levels | 1 | 1 |
| Number of Positions | 2 | 2 - 19 |
| Pitch [x] | 5 mm | 5 - 5.08 mm |
| Pitch [x] | 0.197 in | 0.197 - 0.2 in |
| Positions Per Level | 2 | 2 - 19 |
| Termination Style | Solder | Solder |
| Type | Header, Male Pins, Shrouded (4 Side) | Header, Male Pins, Shrouded (4 Side) |
| Voltage - IEC | 400 V | 250 - 400 V |
| Voltage - UL | 300 V | 300 V |
Pluggable Terminal Blocks 3 Pos 5mm pitch Through Hole Header
| Part | Number of Levels | Type | Insulation Height | Insulation Height | Mounting Type | Color | Contact Mating Finish | Termination Style | Pitch [x] | Pitch [x] | Positions Per Level | Contact Tail Length | Contact Tail Length | Header Orientation | Voltage - IEC | Current - IEC | Number of Positions | Housing Material | Material Flammability Rating | Features | Voltage - UL | Current - UL |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 1758649 | 1 | Header, Male Pins, Shrouded (4 Side) | 8.61 mm | 0.339 " | Through Hole | Black | Tin | Solder | 0.2 in | 5.08 mm | 19 | 3.5 mm | 0.138 in | 90°, Right Angle | 250 V | 12 A | 19 | |||||
Phoenix Contact 1944783 | 1 | Header, Male Pins, Shrouded (4 Side) | 8.61 mm | 0.339 " | Through Hole | Green | Tin | Solder | 0.197 in | 5 mm | 2 | 3.5 mm | 0.138 in | 90°, Right Angle | 400 V | 12 A | 2 | Polybutylene Terephthalate (PBT) | UL94 V-0 | Locking Ramp | 300 V | |

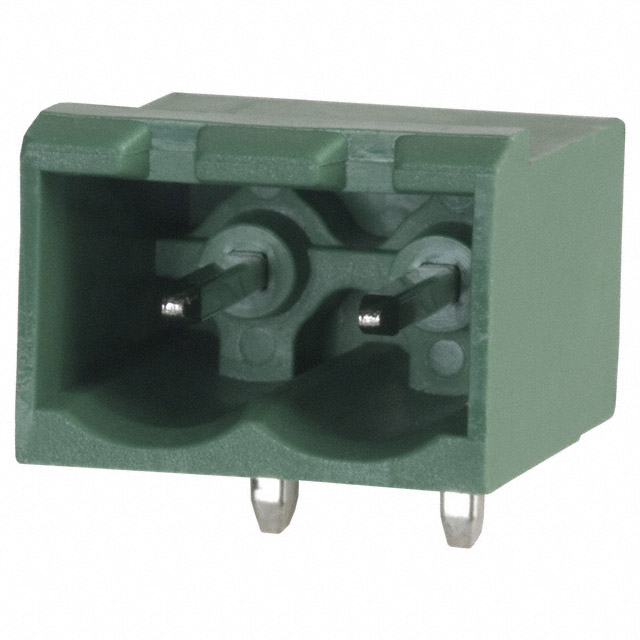

Phoenix Contact 1923759 | 1 | Header, Male Pins, Shrouded (4 Side) | 8.61 mm | 0.339 " | Through Hole | Green | Tin | Solder | 0.197 in | 5 mm | 2 | 3.5 mm | 0.138 in | 90°, Right Angle | 400 V | 16 A | 2 | Polyamide (PA), Nylon | UL94 V-0 | 300 V | 16 A |
