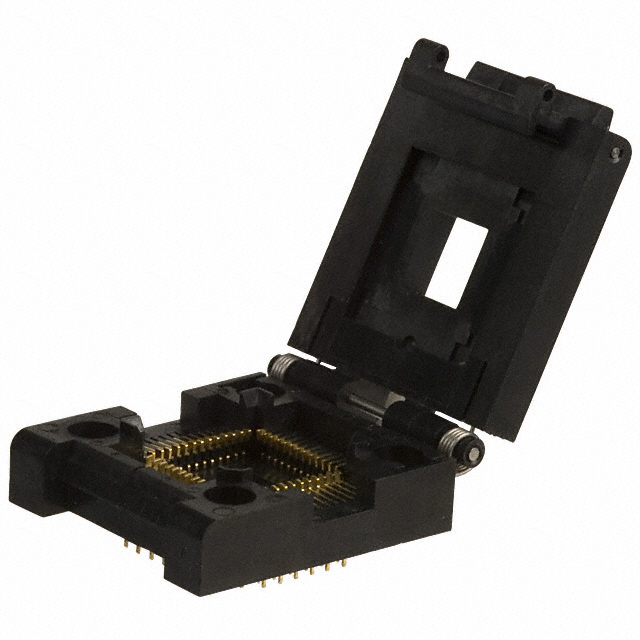

52-536-11
ObsoleteAries Electronics
CONN SOCKET PLCC ZIF 52POS GOLD
52-536-11
ObsoleteAries Electronics
CONN SOCKET PLCC ZIF 52POS GOLD
Description
General part information
52-536-11
52 (4 x 13) Pos PLCC, ZIF (ZIP) Socket Gold Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | 52-536-11 |
|---|---|
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 12 µin |
| Features | Open Frame |
| Grid Columns | 13 |
| Grid Rows | 4 |
| Mounting Type | Through Hole |
| Number of Positions or Pins (Grid) | 52 |
| Pitch - Mating | 0.05 in |
| Type | ZIF (ZIP), PLCC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
