Description
General part information

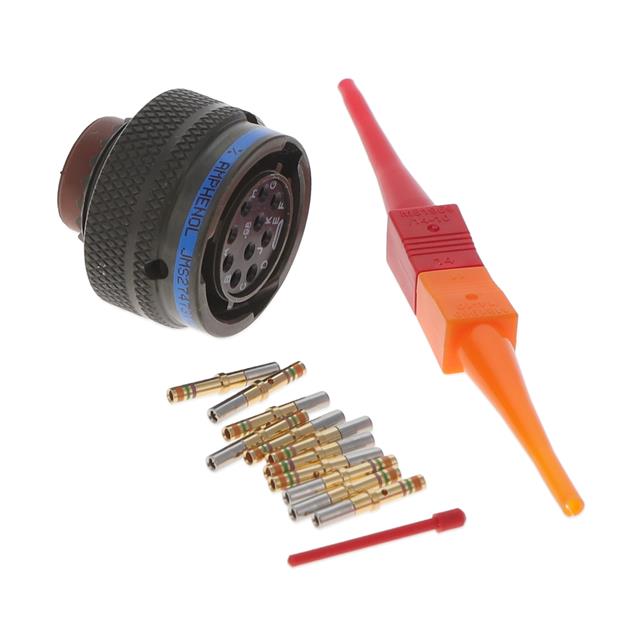

MS27473T12B98S
Position Circular Connector Plug, Female Sockets Crimp
Technical Specifications
Parameters and characteristics for this part
| Specification | MS27473T12B98S |
|---|---|
| Applications | Aviation, Military |
| Color | Olive Drab |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 50 µin |
| Contact Material | Copper Alloy |
| Fastening Type | Bayonet Lock |
| Features | Coupling Nut |
| Grade | Military |
| Ingress Protection | Environment Resistant |
| Insert Material | Plastic |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature (Max) | 175 °C |
| Operating Temperature (Min) | -65 °C |
| Orientation | N (Normal) |
| Primary Material | Metal |
| Qualification | MIL-DTL-38999 Series II |
| Shell Finish | Olive Drab Cadmium, Nickel |
| Shell Material | Aluminum |
| Shell Size - Insert (Maximum) | 98 |
| Shell Size - Insert (Minimum) | 12 |
| Shielding | Unshielded |
| Termination | Crimp |
