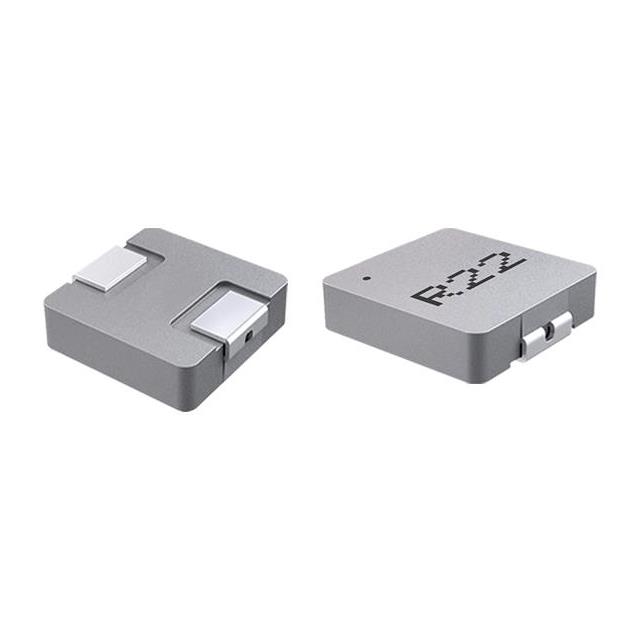

CSHB0412R-R22M
220 nH Shielded Molded Inductor 10.5 A 10.5mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | CSHB0412R-R22M |
|---|---|
| Current - Saturation (Isat) | 12 A |
| Current Rating | 10.5 A |
| DC Resistance (DCR) (Max) | 10.5 mOhm |
| Height - Seated (Max) | 0.047 in |
| Inductance | 220 nH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Alloy Powder |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 2-SMD, Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.173 in |
| Size / Dimension Width | 0.165 in |
| Tolerance | 20 % |
| Type | Molded |
