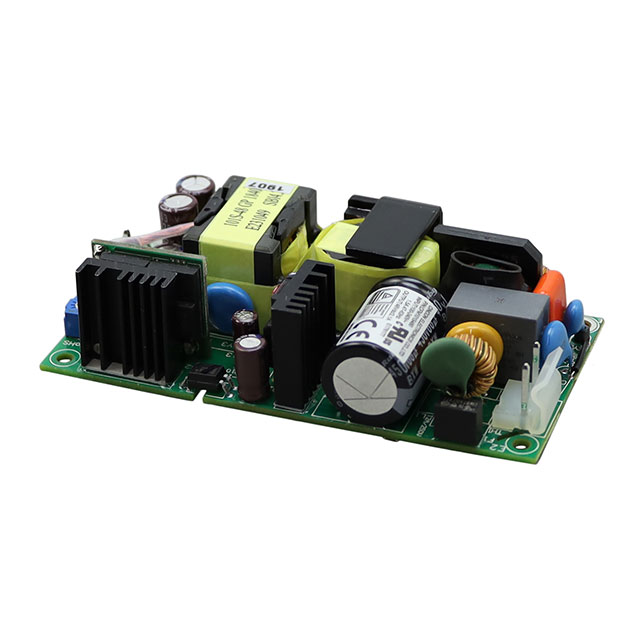

CFM101S480

Obsolete

Cincon Electronics Co. LTD

AC/DC CONVERTER 48V 101W

Search across all available documentation for this part.

Obsolete

Cincon Electronics Co. LTD

AC/DC CONVERTER 48V 101W

Technical Specifications

Parameters and characteristics for this part

Specification	CFM101S480

Applications	ITE (Commercial)
Approval Agency	CE, cURus, FCC, TUV
Current - Output 1	2.1 A
Efficiency	89 %
Features	PFC, Adjustable Output, Universal Input
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Power (Watts)	101 W
Size / Dimension [x]	101.6 mm
Size / Dimension [x]	4 in
Size / Dimension [y]	2 in
Size / Dimension [y]	50.8 mm
Size / Dimension [z]	1.1 in
Size / Dimension [z]	27.9 mm
Type	Open Frame
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	4.242 kV
Voltage - Output 1	48 V

AC/DC CONVERTER 48V 101W

Part	Applications	Voltage - Isolation	Features	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Type	Current - Output 1	Voltage - Output 1	Approval Agency	Power (Watts)	Number of Outputs	Efficiency	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input [Min]	Voltage - Input [Max]
Cincon Electronics Co. LTD CFM101S480	ITE (Commercial)	4.242 kV	Adjustable Output, PFC, Universal Input	101.6 mm	2 in	4 in	1.1 in	50.8 mm	27.9 mm	Open Frame	2.1 A	48 V	CE, cURus, FCC, TUV	101 W	1	89 %	Chassis Mount	70 °C	0 °C	90 VAC	264 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 29.21

General part information

Open Frame AC DC Converters 1 Output 48V 90 ~ 264 VAC Input

Technical documentation and resources

No documents available
