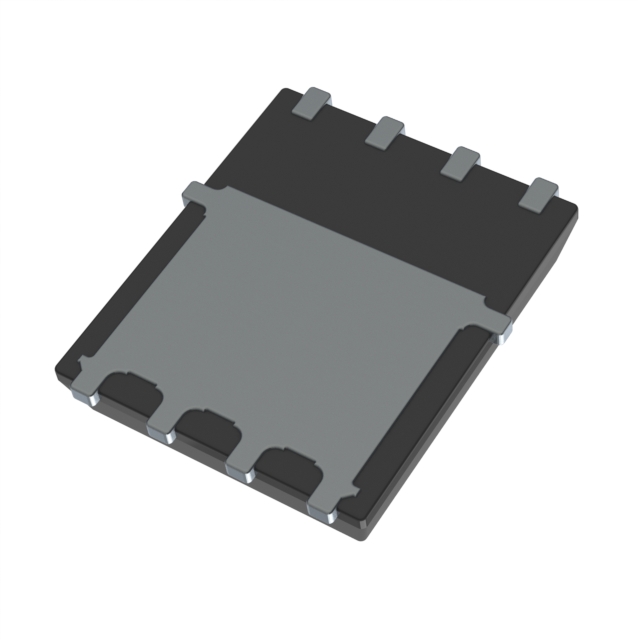

ISC240P06LMATMA1

Active

Infineon Technologies

P-CHANNEL MOSFETS IN LOGIC LEVEL, REDUCING DESIGN COMPLEXITY IN MEDIUM AND LOW POWER APPLICATIONS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ISC240P06LMATMA1

Active

Infineon Technologies

P-CHANNEL MOSFETS IN LOGIC LEVEL, REDUCING DESIGN COMPLEXITY IN MEDIUM AND LOW POWER APPLICATIONS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ISC240P06LMATMA1

Current - Continuous Drain (Id) @ 25°C	59 A
Drain to Source Voltage (Vdss)	60 V
Drive Voltage (Max Rds On, Min Rds On)	10 V, 4.5 V
FET Type	P-Channel
Gate Charge (Qg) (Max) @ Vgs	136 nC
Input Capacitance (Ciss) (Max) @ Vds [Max]	4400 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	175 ░C
Operating Temperature [Min]	-55 °C
Package / Case	8-PowerTDFN
Power Dissipation (Max)	188 W
Rds On (Max) @ Id, Vgs	24 mOhm
Supplier Device Package	PG-TDSON-8 FL
Technology	MOSFET (Metal Oxide)
Vgs (Max)	20 V
Vgs(th) (Max) @ Id	2 V

ISC240P06 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Power Dissipation (Max)	Package / Case	Rds On (Max) @ Id, Vgs	Supplier Device Package	Input Capacitance (Ciss) (Max) @ Vds [Max]	Current - Continuous Drain (Id) @ 25°C	Vgs (Max)	Vgs(th) (Max) @ Id	Mounting Type	Technology	FET Type	Drive Voltage (Max Rds On, Min Rds On)	Drain to Source Voltage (Vdss)	Gate Charge (Qg) (Max) @ Vgs
Infineon Technologies ISC240P06LMATMA1	-55 °C	175 ░C	188 W	8-PowerTDFN	24 mOhm	PG-TDSON-8 FL	4400 pF	59 A	20 V	2 V	Surface Mount	MOSFET (Metal Oxide)	P-Channel	4.5 V 10 V	60 V	136 nC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 3.06
		10	$ 1.99
		100	$ 1.38
		500	$ 1.12
		1000	$ 1.03
		2000	$ 0.97
	Digi-Reel®	1	$ 3.06
		10	$ 1.99
		100	$ 1.38
		500	$ 1.12
		1000	$ 1.03
		2000	$ 0.97
	Tape & Reel (TR)	5000	$ 0.97
Newark	Each (Supplied on Cut Tape)	1	$ 3.41
		10	$ 2.48
		25	$ 2.29
		50	$ 2.11
		100	$ 1.92
		250	$ 1.84
		500	$ 1.65
		1000	$ 1.51

Description

General part information

ISC240P06 Series

OptiMOS™ P-channel MOSFETs60 V inSuperSO8package represents the new technology targeted forbattery management, load switch and reverse polarity protection applications. The main advantage of a P-channel device is the reduction of design complexity in medium and low power applications. Its easy interface to MCU, fast switching as well as avalanche ruggedness makes it suitable for high quality demanding applications. It is available in logic level featuring a wide RDS(on)range and improves efficiency at low loads due to low Qg.
