4-1393637-9

Active

TE Connectivity AMP Connectors

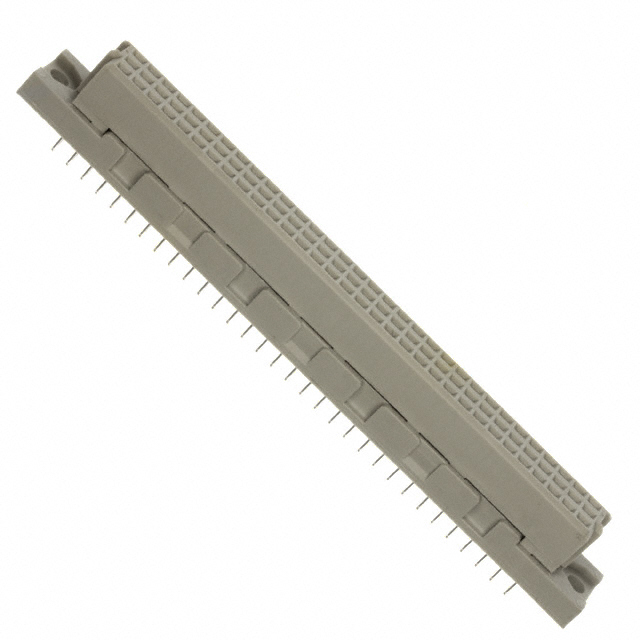

CONN DIN RCPT 96POS PCB GOLD

Deep-Dive with AI

Search across all available documentation for this part.

4-1393637-9

Active

TE Connectivity AMP Connectors

CONN DIN RCPT 96POS PCB GOLD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	4-1393637-9	1393637 Series

Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish	Gold, Gold-Palladium	Gold, Gold-Palladium
Material - Insulation	Glass Filled, Polyester, Polybutylene Terephthalate (PBT)	Glass Filled, Polyester, Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	96	48 - 96
Number of Positions	-	78
Number of Positions	-	2
Number of Positions Loaded	64	64 - 78
Number of Positions Loaded	-	All
Number of Rows	3	3
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch [x]	2.54 mm	2.54 mm
Pitch [x]	0.1 in	0.1 in
Style	C	C, C/2, M
Style	-	1/2 C
Termination	Press-Fit	Wire Wrap, Press-Fit

1393637 Series

CONN DIN RCPT 96POS PCB GOLD

Part	Mounting Type	Number of Rows	Material - Insulation	Connector Type	Pitch [x]	Pitch [x]	Material Flammability Rating	Contact Finish	Style	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Number of Positions Loaded	Style	Number of Positions Loaded	Number of Positions [custom]	Number of Positions [custom]
TE Connectivity AMP Connectors 7-1393637-3	Through Hole	3	Glass Filled, Polybutylene Terephthalate (PBT), Polyester	Receptacle, Female Sockets	2.54 mm	0.1 in	UL94 V-0	Gold, Gold-Palladium	C	Press-Fit, Wire Wrap	-55 °C	125 °C	96	All
TE Connectivity AMP Connectors 4-1393637-4	Through Hole	3	Glass Filled, Polybutylene Terephthalate (PBT), Polyester	Receptacle, Female Sockets	2.54 mm	0.1 in	UL94 V-0	Gold, Gold-Palladium	C/2	Press-Fit	-55 °C	125 °C	48	All	1/2 C
TE Connectivity AMP Connectors 2-1393637-9	Through Hole	3	Glass Filled, Polybutylene Terephthalate (PBT), Polyester	Receptacle, Female Sockets	2.54 mm	0.1 in	UL94 V-0	Gold, Gold-Palladium	C	Press-Fit, Wire Wrap	-55 °C	125 °C	96	All
TE Connectivity AMP Connectors 4-1393637-6	Through Hole	3	Glass Filled, Polybutylene Terephthalate (PBT), Polyester	Receptacle, Female Sockets	2.54 mm	0.1 in	UL94 V-0	Gold, Gold-Palladium	C	Press-Fit	-55 °C	125 °C	96	All
TE Connectivity AMP Connectors 6-1393637-0	Through Hole	3	Glass Filled, Polybutylene Terephthalate (PBT), Polyester	Receptacle, Female Sockets	2.54 mm	0.1 in	UL94 V-0	Gold, Gold-Palladium	M	Press-Fit	-55 °C	125 °C				78	78	2
TE Connectivity AMP Connectors 4-1393637-9	Through Hole	3	Glass Filled, Polybutylene Terephthalate (PBT), Polyester	Receptacle, Female Sockets	2.54 mm	0.1 in	UL94 V-0	Gold, Gold-Palladium	C	Press-Fit	-55 °C	125 °C	96			64

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.65
		10	$ 4.08
		25	$ 3.97
		50	$ 3.88
		100	$ 3.76

Description

General part information

1393637 Series

96 Position Din Connector Receptacle, Female Sockets Gold or Gold-Palladium Through Hole

Documents

Technical documentation and resources

No documents available
