1050541-1

Active

TE Connectivity Aerospace, Defense and Marine

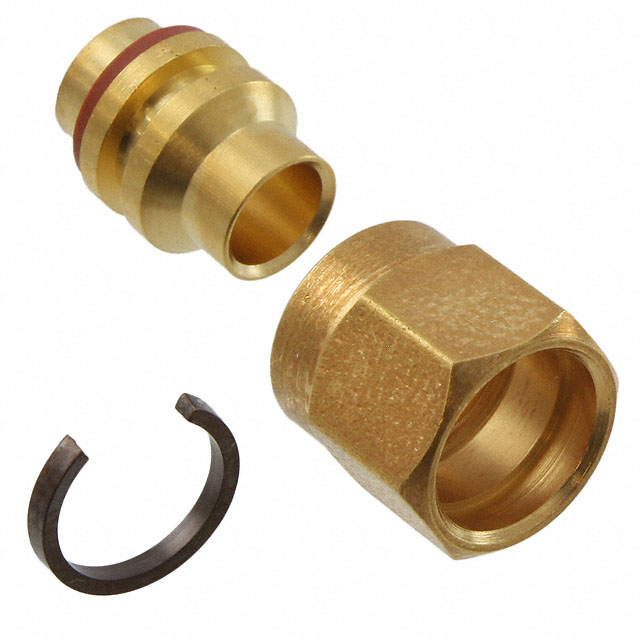

CONN SMA PLUG STR 50 OHM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1050541-1

Active

TE Connectivity Aerospace, Defense and Marine

CONN SMA PLUG STR 50 OHM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

1050 Series

SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1050541-1	1050 Series

	-	-
Body Finish	Gold	Gold, Gold; Passivated
Body Material	Stainless Steel	Stainless Steel
Cable Group	-	RG-405 (.085" Semi Rigid)
Center Contact Material	-	Beryllium Copper
Center Contact Plating	-	Gold
Connector Style	SMA	SMA
Connector Type	Male Pin, Plug	Male Pin, Plug, Female Socket
Contact Termination	-	Solder, Crimp
Dielectric Material	-	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz	18 GHz
Housing Color	Gold	Gold, Silver
Impedance	50 Ohms	50 Ohms
Insertion Loss	-	0.3 dB
Mating Cycles	500	500
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Ports	1	1
Operating Temperature [Max]	105 ░C	105 - 165 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Shield Termination	Solder	Solder, Crimp
Voltage Rating	335 V	335 - 500 V

1050 Series

CONN SMA PLUG STR 50 OHM SOLDER

Part	Center Contact Plating	Dielectric Material	Voltage Rating	Shield Termination	Body Finish	Operating Temperature [Min]	Operating Temperature [Max]	Mating Cycles	Contact Termination	Frequency - Max [Max]	Impedance	Number of Ports	Body Material	Center Contact Material	Connector Style	Connector Type	Housing Color	Mounting Type	Insertion Loss	Cable Group
TE Connectivity Aerospace, Defense and Marine 1050786-1	Gold	Polytetrafluoroethylene (PTFE)	500 V	Solder	Gold	-65 ░C	105 ░C	500	Solder	18 GHz	50 Ohms	1	Stainless Steel	Beryllium Copper	SMA	Male Pin, Plug	Gold	Free Hanging (In-Line)
TE Connectivity Aerospace, Defense and Marine 1050598-1	Gold	Polytetrafluoroethylene (PTFE)	335 V	Crimp		-65 ░C	105 ░C	500	Crimp	18 GHz	50 Ohms	1	Stainless Steel	Beryllium Copper	SMA	Male Pin, Plug	Silver	Free Hanging (In-Line)	0.3 dB	RG-405 (.085" Semi Rigid)
TE Connectivity Aerospace, Defense and Marine 1050799-1
TE Connectivity Aerospace, Defense and Marine 1050792-1	Gold	Polytetrafluoroethylene (PTFE)	500 V	Crimp		-65 ░C	105 ░C	500		18 GHz	50 Ohms	1	Stainless Steel	Beryllium Copper	SMA	Male Pin, Plug	Silver	Free Hanging (In-Line)	0.3 dB
TE Connectivity Aerospace, Defense and Marine 1050776-1	Gold	Polytetrafluoroethylene (PTFE)	500 V	Solder	Gold; Passivated	-65 ░C	105 ░C	500	Solder	18 GHz	50 Ohms	1	Stainless Steel	Beryllium Copper	SMA	Male Pin, Plug	Gold, Silver	Free Hanging (In-Line)
TE Connectivity Aerospace, Defense and Marine 1050605-1	Gold	Polytetrafluoroethylene (PTFE)	500 V	Solder		-65 ░C	165 °C	500	Solder	18 GHz	50 Ohms	1	Stainless Steel	Beryllium Copper	SMA	Male Pin, Plug	Silver	Free Hanging (In-Line)
TE Connectivity Aerospace, Defense and Marine 1050801-1	Gold	Polytetrafluoroethylene (PTFE)	500 V	Crimp		-65 ░C	105 ░C	500		18 GHz	50 Ohms	1	Stainless Steel	Beryllium Copper	SMA	Male Pin, Plug	Silver	Free Hanging (In-Line)	0.3 dB
TE Connectivity Aerospace, Defense and Marine 1050541-1			335 V	Solder	Gold	-65 ░C	105 ░C	500		18 GHz	50 Ohms	1	Stainless Steel		SMA	Male Pin, Plug	Gold	Free Hanging (In-Line)
TE Connectivity Aerospace, Defense and Marine 1050794-1
TE Connectivity Aerospace, Defense and Marine 1050790-1
