CL-840-S65-PC

Active

Intematix Corporation

CHROMALIT SQUARE 80CRI 65X65MM

Search across all available documentation for this part.

Active

Intematix Corporation

CHROMALIT SQUARE 80CRI 65X65MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CL-840-S65-PC	CL-840 Series

CCT (K)	4000 K	4000 K
Conversion Efficacy (lm/Wrad)(typ)	210 lm/Wrad	195 - 220 lm/Wrad
CRI (Color Rendering Index)	80	80
Lens Size	65 mm	9.5 - 135 mm
Lens Size	-	152.5 - 1220 mm
Lens Size	-	12.5 - 215 mm
Lens Style	Square with Flat Top	Rectangle with Flat Top, Round with Domed Top, Square with Flat Top, Linear with Domed Top
Viewing Angle	115 °	115 °

CHROMALIT XT LINEAR

Part	CRI (Color Rendering Index)	Lens Style	CCT (K)	Conversion Efficacy (lm/Wrad)(typ)	Lens Size [x]	Lens Size [y]	Lens Size	Viewing Angle
Intematix Corporation CL-840-L152-XT	80	Rectangle with Flat Top	4000 K	215 lm/Wrad	152.5 mm	22.5 mm
Intematix Corporation CL-840-R45-XT	80		4000 K	215 lm/Wrad			45 mm	115 °
Intematix Corporation CL-840-CAN40-PC	80	Round with Domed Top	4000 K	195 lm/Wrad			24 mm
Intematix Corporation CL-840-SR-PC	80		4000 K	210 lm/Wrad			45 mm	115 °
Intematix Corporation CL-840-P215-PC	80	Rectangle with Flat Top	4000 K	210 lm/Wrad	305 mm	215 mm		115 °
Intematix Corporation CL-840-S65-XT	80	Square with Flat Top	4000 K	215 lm/Wrad			65 mm
Intematix Corporation CL-840-R62-XT	80		4000 K	215 lm/Wrad			61.5 mm	115 °
Intematix Corporation CL-840-R135-XT	80		4000 K	215 lm/Wrad			135 mm
Intematix Corporation CL-840-S55-PC	80	Square with Flat Top	4000 K	210 lm/Wrad			55 mm	115 °
Intematix Corporation CL-840-DOM40-PC	80	Round with Domed Top	4000 K	210 lm/Wrad			28 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5000	$ 7.13

General part information

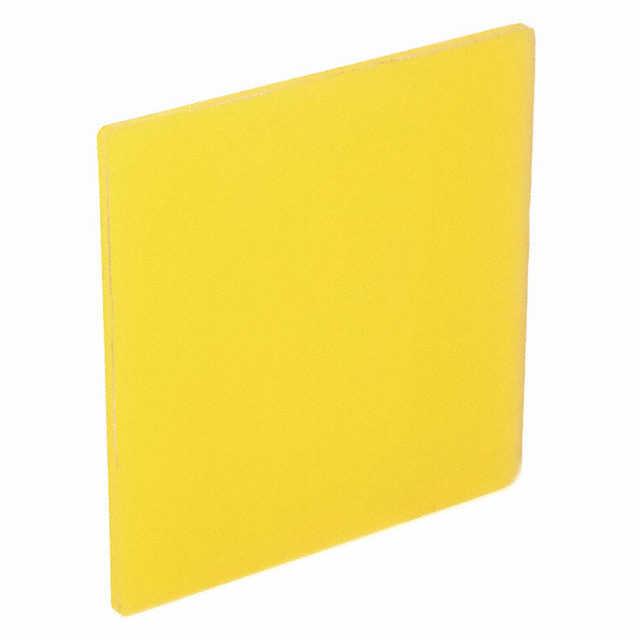

ChromaLit™ Square Remote Phospher Light Source 80 CRI 4000.0 115° Square with Flat Top 65mm

Technical documentation and resources
