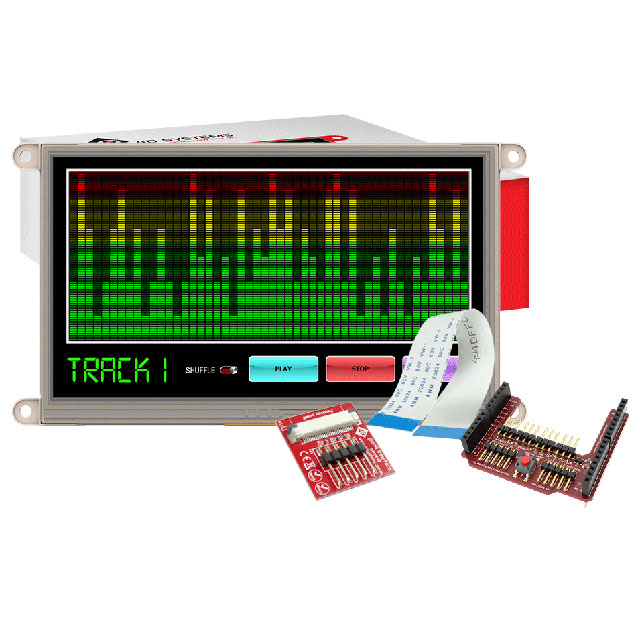

GEN4-ULCD-70D-AR
Active4D Systems Pty Ltd
GRAPHIC DISPLAY TFT RGB 7"
Deep-Dive with AI
Search across all available documentation for this part.
GEN4-ULCD-70D-AR
Active4D Systems Pty Ltd
GRAPHIC DISPLAY TFT RGB 7"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | GEN4-ULCD-70D-AR | GEN4-ULCD Series |
|---|---|---|
| Backlight | LED - White | LED - White |
| Diagonal Screen Size | 177.8 mm | 60.96 - 177.8 mm |
| Diagonal Screen Size | 7 in | 2.8 - 7 in |
| Diagonal Screen Size | - | 127 mm |
| Diagonal Screen Size | - | 2.4 - 5 in |
| Display Mode | Transmissive | Transmissive |
| Display Type | TFT - Color | TFT - Color |
| Dot Pitch [x] | 0.19 mm | 0.15 - 0.2 mm |
| Dot Pitch [y] | 0.18 mm | 0.15 - 0.2 mm |
| Dot Pixels | WVGA | WVGA |
| Dot Pixels [x] | 800 | 240 - 800 |
| Dot Pixels [y] | 480 | 272 - 480 |
| Graphics Color | Green, Red, Blue | Green, Red, Blue |
| Interface | SPI, I2C, TTL | SPI, I2C, TTL, Parallel/Serial |
| Touchscreen | - | Resistive, Capacitive |
| Viewing Area | - | 43.2 mm |
| Viewing Area | - | 57.6 mm |
| Viewing Area | - | 64.8 - 73.4 mm |
| Viewing Area [x] | 154 mm | 36.7 - 154 mm |
| Viewing Area [y] | 85.92 mm | 48.6 - 85.92 mm |
GEN4-ULCD Series
GRAPHIC DISPLAY TFT RGB 4.3"
| Part | Dot Pitch [x] | Dot Pitch [y] | Display Type | Display Mode | Interface | Graphics Color | Touchscreen | Backlight | Dot Pixels [y] | Dot Pixels [x] | Diagonal Screen Size | Diagonal Screen Size | Viewing Area [y] | Viewing Area [x] | Viewing Area [custom] | Viewing Area [custom] | Dot Pixels | Diagonal Screen Size [custom] | Diagonal Screen Size [custom] | Viewing Area [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
4D Systems Pty Ltd GEN4-ULCD-43DT-AR | 0.2 mm | 0.2 mm | TFT - Color | Transmissive | I2C, SPI, TTL | Blue, Green, Red | Resistive | LED - White | 272 | 480 | 109.22 mm | 4.3 in | 53.86 mm | 95.04 mm | ||||||
4D Systems Pty Ltd GEN4-ULCD-28D | 0.18 mm | 0.18 mm | TFT - Color | Transmissive | I2C, SPI, TTL | Blue, Green, Red | LED - White | 320 | 240 pixels | 71.12 mm | 2.8 in | 43.2 mm | 57.6 mm | |||||||
4D Systems Pty Ltd GEN4-ULCD-28DT-AR | 0.18 mm | 0.18 mm | TFT - Color | Transmissive | I2C, SPI, TTL | Blue, Green, Red | Resistive | LED - White | 320 | 240 pixels | 71.12 mm | 2.8 in | 43.2 mm | 57.6 mm | ||||||
4D Systems Pty Ltd GEN4-ULCD-70DCT-CLB | 0.19 mm | 0.18 mm | TFT - Color | Transmissive | Parallel/Serial | Blue, Green, Red | Capacitive | LED - White | 480 | 800 | 177.8 mm | 7 in | 85.92 mm | 154 mm | WVGA | |||||
4D Systems Pty Ltd GEN4-ULCD-70D | 0.19 mm | 0.18 mm | TFT - Color | Transmissive | I2C, SPI, TTL | Blue, Green, Red | LED - White | 480 | 800 | 177.8 mm | 7 in | 85.92 mm | 154 mm | WVGA | ||||||
4D Systems Pty Ltd GEN4-ULCD-43D | 0.2 mm | 0.2 mm | TFT - Color | Transmissive | I2C, SPI, TTL | Blue, Green, Red | LED - White | 272 | 480 | 109.22 mm | 4.3 in | 53.86 mm | 95.04 mm | |||||||
4D Systems Pty Ltd GEN4-ULCD-50D-PI | TFT - Color | Transmissive | I2C, SPI, TTL | Blue, Green, Red | LED - White | 480 | 800 | 64.8 mm | 108 mm | WVGA | 127 mm | 5 in | ||||||||
4D Systems Pty Ltd GEN4-ULCD-70D-AR | 0.19 mm | 0.18 mm | TFT - Color | Transmissive | I2C, SPI, TTL | Blue, Green, Red | LED - White | 480 | 800 | 177.8 mm | 7 in | 85.92 mm | 154 mm | WVGA | ||||||
4D Systems Pty Ltd GEN4-ULCD-24DT-AR | 0.15 mm | 0.15 mm | TFT - Color | Transmissive | I2C, SPI, TTL | Blue, Green, Red | Resistive | LED - White | 320 | 240 pixels | 60.96 mm | 49 mm | 36.7 mm | 2.4 in | ||||||
4D Systems Pty Ltd GEN4-ULCD-70DT-AR | 0.19 mm | 0.18 mm | TFT - Color | Transmissive | I2C, SPI, TTL | Blue, Green, Red | Resistive | LED - White | 480 | 800 | 177.8 mm | 7 in | 85.92 mm | 154 mm | WVGA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 149.95 | |
| 10 | $ 125.10 | |||
Description
General part information
GEN4-ULCD Series
Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color I2C, SPI, TTL 7" (177.80mm) 800 x 480 (WVGA)
