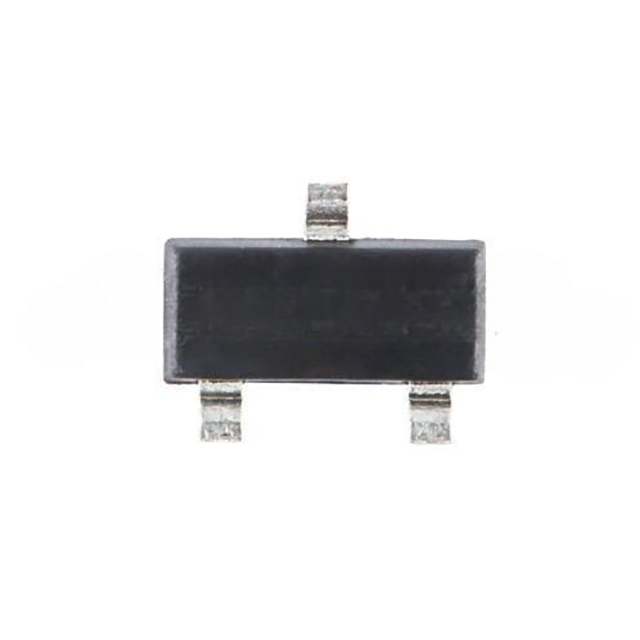

TL431S
Shunt Voltage Reference IC Adjustable 2.495V 36 VV ±0.5% 100 mA SOT-89
Technical Specifications
Parameters and characteristics for this part
| Specification | TL431S |
|---|---|
| Current - Cathode | 500 µA |
| Current - Output | 100 mA |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output Type | Adjustable |
| Package / Case | TO-243AA |
| Package Name | SOT-89-3, SOT-89 |
| Reference Type | Shunt |
| Temperature Coefficient | 50 ppm/°C |
| Tolerance | 0.5 % |
| Voltage - Output (Max) | 36 V |
| Voltage - Output (Min/Fixed) | 2.495 V |
