1020KSW410
ActiveKanebridge
SELF-DRILLING SCREW - TYPE BSD -
1020KSW410
ActiveKanebridge
SELF-DRILLING SCREW - TYPE BSD -
Description
General part information
1020KSW410

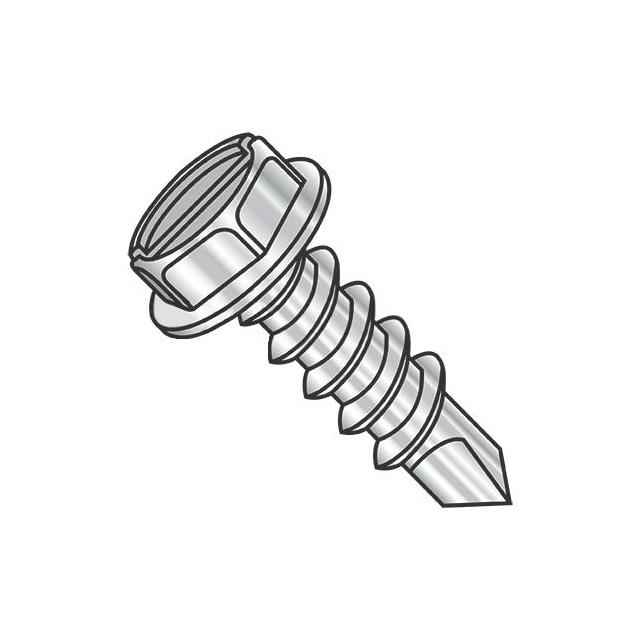

#10-16 Indented Hex Head Self-Drilling Screw Slotted Drive Stainless Steel
Technical Specifications
Parameters and characteristics for this part
| Specification | 1020KSW410 |
|---|---|
| Drive Type | Slotted |
| Features | Washer Included |
| Head Diameter | 0.309 in |
| Head Height | 0.113 in |
| Length - Below Head | 1.25 in |
| Length - Overall | 1.363 in |
| Material | Stainless Steel |
| Plating | Plain |
| Screw Head Type | Indented Hex Head |
| Thread Size (Max) | 16 mm |
| Thread Size (Min) | 10 mm |
| Type | Self-Drilling Screw |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
