Description
General part information

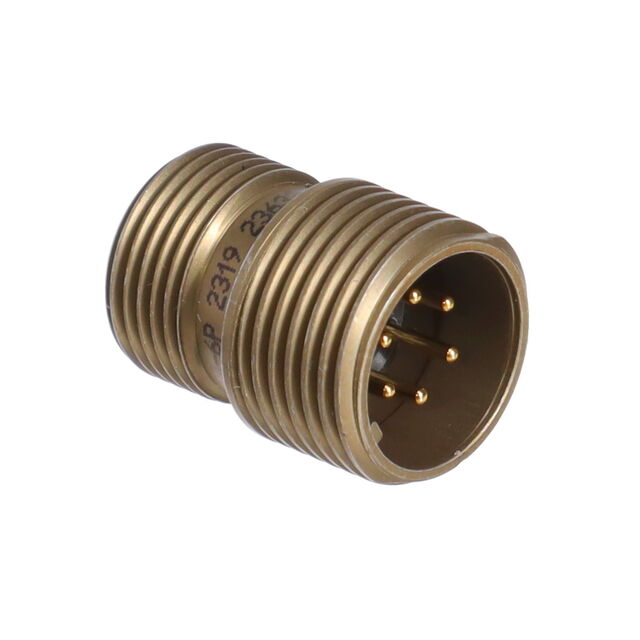

PC04E-10-6P
6 Position Circular Connector Receptacle, Male Pins Solder Cup
Technical Specifications
Parameters and characteristics for this part
| Specification | PC04E-10-6P |
|---|---|
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Fastening Type | Threaded |
| Ingress Protection | Environment Resistant |
| Insert Material | Neoprene |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 6 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Orientation | N (Normal) |
| Primary Material | Metal |
| Shell Finish | Bright Cadmium, Clear Chromate |
| Shell Material | Aluminum |
| Shell Size - Insert Length | 10 mm |
| Shell Size - Insert Width | 6 mm |
| Shielding | Unshielded |
| Termination | Solder Cup |
