0002081236 - 02-08-123x

0002081236

Obsolete

Molex

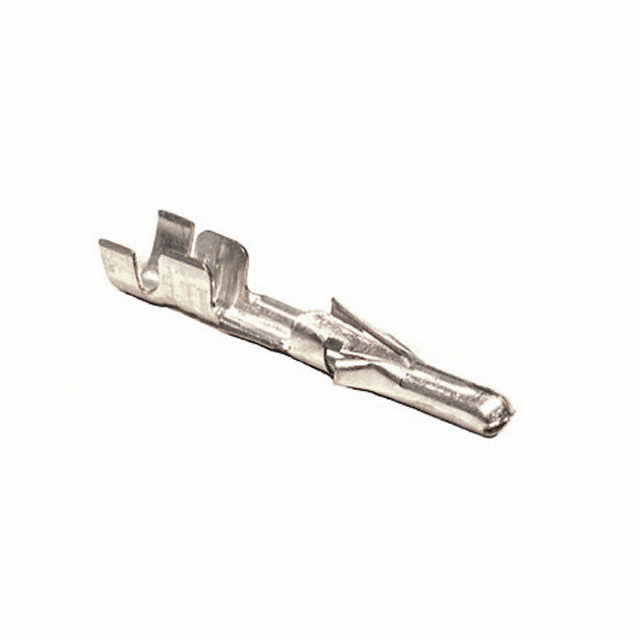

CONN PIN 18-22AWG CRIMP TIN-LEAD

Deep-Dive with AI

Search across all available documentation for this part.

0002081236 - 02-08-123x

0002081236

Obsolete

Molex

CONN PIN 18-22AWG CRIMP TIN-LEAD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

000208 Series

Pin Contact Tin-Lead 18-22 AWG Crimp Power

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	0002081236	000208 Series

Contact Finish	Tin-Lead	Tin-Lead, Tin
Contact Finish Thickness	35.4 µin	20 - 35.4 µin
Contact Finish Thickness	0.9 µm	0.51 - 0.9 µm
Contact Material	-	Brass
Contact Termination	Crimp	Crimp
Diameter - Barrel	-	2.29 mm
Diameter - Barrel	-	0.09 "
Insulation	-	Non-Insulated
Length - Barrel	-	11.96 mm
Length - Barrel	-	0.471 in
Length - Overall	-	0.865 in
Length - Overall	-	21.97 mm
Pin or Socket	Pin	Pin, Socket
Terminal Type	-	Female, Receptacle (Socket)
Termination	-	Crimp
Type	Power	Power
Wire Gauge [Max]	22 AWG	20 - 24 AWG
Wire Gauge [Min]	17.5 AWG	14 - 17.5 AWG

000208 Series

0002081006

Part	Contact Termination	Contact Finish	Type	Contact Finish Thickness	Contact Finish Thickness	Wire Gauge [Max]	Wire Gauge [Min]	Pin or Socket	Contact Material	Length - Barrel [x]	Length - Barrel [x]	Length - Overall	Length - Overall	Diameter - Barrel [diameter]	Diameter - Barrel [diameter]	Termination	Terminal Type	Insulation
Molex 0002081006	Crimp
Molex 0002081236	Crimp	Tin-Lead	Power	35.4 µin	0.9 µm	22 AWG	17.5 AWG	Pin
Molex 0002081335	Crimp	Tin	Power	20 µin	0.51 µm	20 AWG	14 AWG	Pin
Molex 0002081235	Crimp	Tin-Lead	Power	35.4 µin	0.9 µm	20 AWG	14 AWG	Pin
Molex 0002081101		Tin				24 AWG	16 AWG		Brass	11.96 mm	0.471 in	0.865 in	21.97 mm	2.29 mm	0.09 "	Crimp	Female, Receptacle (Socket)	Non-Insulated
Molex 0002081005	Crimp
Molex 0002081001	Crimp	Tin	Power	20 µin	0.51 µm	20 AWG	14 AWG	Socket
Molex 0002081007	Crimp
