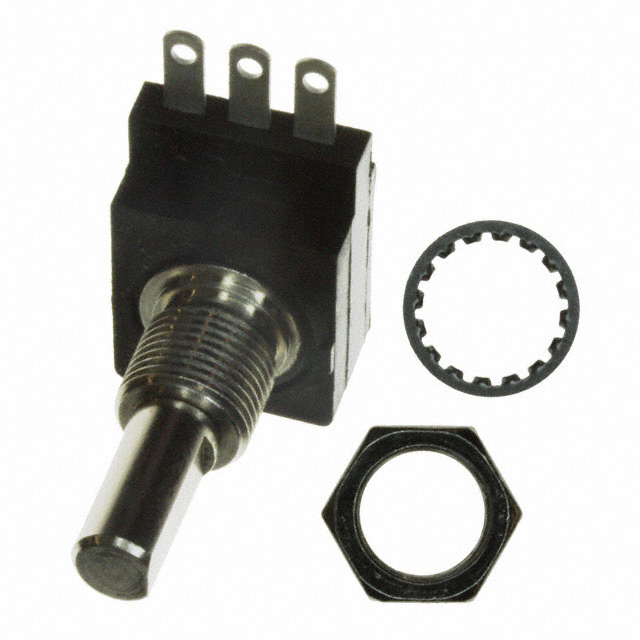

282T33L502A25A2
ActiveCTS Electrocomponents
POT 5K OHM 1/4W PLASTIC LINEAR
282T33L502A25A2
ActiveCTS Electrocomponents
POT 5K OHM 1/4W PLASTIC LINEAR
Description
General part information
282T33L502A25A2
5k Ohm 1 Gang Linear Panel Mount Potentiometer 1.0 Turns Conductive Plastic 0.25W, 1/4W Solder Lug
Technical Specifications
Parameters and characteristics for this part
| Specification | 282T33L502A25A2 |
|---|---|
| Actuator Diameter | 6.35 mm |
| Actuator Length | 0.875 in |
| Actuator Type | Flatted |
| Adjustment Type | User Defined |
| Built in Switch | None |
| Bushing Thread | 3/8-32 |
| Features | Long Life |
| Mounting Type | Panel Mount |
| Number of Gangs | 1 |
| Number of Turns | 1 turns |
| Power (Watts) | 250 mW |
| Power (Watts) Options | 1/4W |
| Resistance | 5 kOhm |
| Resistive Material | Conductive Plastic |
| Rotation | 250 ° |
| Size - Body Face Length | 0.858 in |
| Size - Body Face Width | 0.626 in |
| Size - Body Shape | Rectangular |
| Taper | Linear |
| Termination Style | Solder Lug |
| Tolerance | 10 % |
