1060204
ActiveSICK, Inc.
MINIATURE PHOTOELECTRIC SENSORS,
1060204
ActiveSICK, Inc.
MINIATURE PHOTOELECTRIC SENSORS,
Description
General part information
1060204

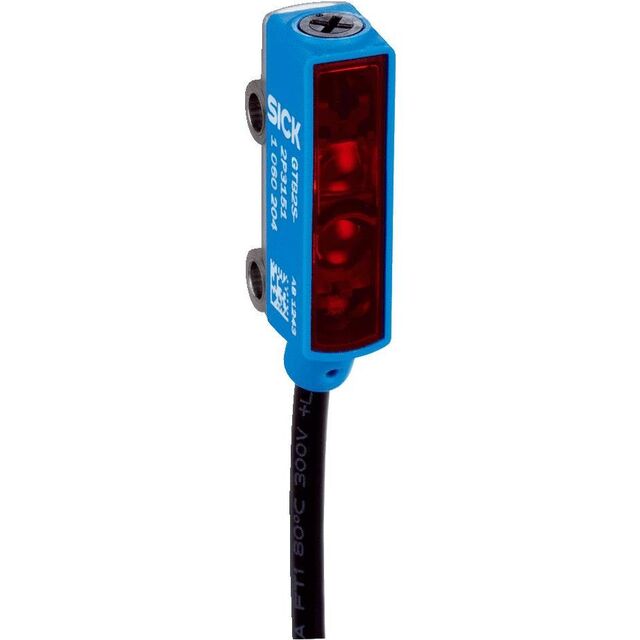

Proximity Optical Sensor 0.079" ~ 4.724" (2mm ~ 120mm) PNP - Light-ON
Technical Specifications
Parameters and characteristics for this part
| Specification | 1060204 |
|---|---|
| Adjustment Turns | 3 turn |
| Adjustment Type | Potentiometer, Adjustable |
| Cable Length | 7.87 in |
| Connection Method | M8, Cable with Connector |
| Ingress Protection | IP67 |
| Light Source | Red |
| Light Source Wavelength (Red) | 640 nm |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | -25 °C |
| Output Configuration | PNP - Light-ON |
| Response Time | 600 µs |
| Sensing Distance Maximum | 4.724 " |
| Sensing Distance Minimum | 0.079 " |
| Sensing Method | Proximity |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
