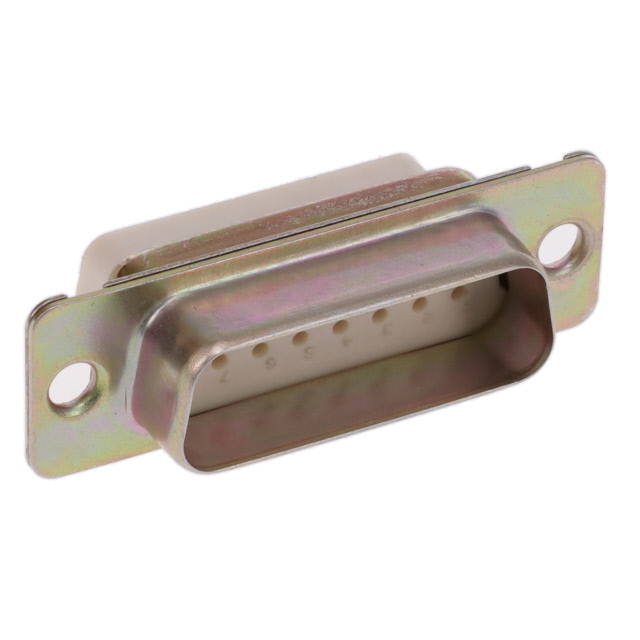

M24308/4-260Z

Active

Amphenol Positronic

DSUB CONN,CRIMP, PLUG, ZINC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

M24308/4-260Z

Active

Amphenol Positronic

DSUB CONN,CRIMP, PLUG, ZINC

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 15.95
		10	$ 13.82
		25	$ 13.10
		50	$ 12.91
		100	$ 11.39
		250	$ 10.63
		500	$ 10.41
		1000	$ 9.87
	Tray	1	$ 8.13
		10	$ 7.32
		25	$ 6.89
		40	$ 6.72
		80	$ 6.54
		230	$ 5.83
		440	$ 5.48
		945	$ 4.84

Description

General part information

M24308/4 Series

Plug for Male Contacts Housing D-Sub Connector 15 Position

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	M24308/4-260Z	M24308/4 Series

Color	Natural	Natural
Connector Style	D-Sub	D-Sub, High Density
Connector Type	Plug for Male Contacts	Plug, Male Pins, Plug for Male Contacts
Contact Finish	-	Gold
Contact Material	-	Copper Alloy
Contact Type	Signal	Signal
Current Rating (Amps)	-	5 - 7.5 A
Dielectric Material	Polyester, Glass Filled	Polyester, Glass Filled
Features	-	Shielded
Flange Feature	Housing/Shell (Unthreaded)	Housing/Shell (Unthreaded)
Material Flammability Rating	-	UL94 V-0
Mating Cycles	500	500
Note	Contacts Not Included	Contacts Not Included
Number of Positions	15	9 - 62
Number of Rows	2	2 - 3
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Primary Material	-	Metal
Shell Material, Finish	Steel, Yellow Chromate Plated Zinc	Yellow Cadmium Plated, Steel, Yellow Chromate Plated Zinc
Shell Size, Connector Layout	2	2 - 5
Shell Size, Connector Layout	-	DB, B, DE, E
Shell Size, Connector Layout	-	1 - 3
Shell Size, Connector Layout	-	(DA, A) High Density
Shell Size, Connector Layout	-	3
Shell Size, Connector Layout	-	B, DB
Termination	-	Crimp
Voltage Rating	-	1000 VDC
Wire Gauge	-	20 - 22 AWG
Wire Gauge	-	26 - 28 AWG

M24308/4 Series

D-SUB

Part	Contact Material	Material Flammability Rating	Connector Type	Number of Positions	Shell Size, Connector Layout	Contact Finish	Current Rating (Amps)	Dielectric Material	Connector Style	Number of Rows	Contact Type	Flange Feature	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material, Finish	Termination	Primary Material	Color	Wire Gauge [Min]	Wire Gauge [Max]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Mating Cycles	Note	Features	Voltage Rating	Shell Size, Connector Layout	Shell Size, Connector Layout [x]	Shell Size, Connector Layout [custom]
Amphenol Positronic M24308/4-5F	Copper Alloy	UL94 V-0	Male Pins, Plug	50	5	Gold	7.5 A	Polyester, Glass Filled	D-Sub	3	Signal	Housing/Shell (Unthreaded)	-55 °C	125 °C	Steel, Yellow Cadmium Plated	Crimp	Metal	Natural	20 AWG	26 AWG
Amphenol Positronic M24308/4-3F	Copper Alloy	UL94 V-0	Male Pins, Plug			Gold	7.5 A	Polyester, Glass Filled	D-Sub	2	Signal	Housing/Shell (Unthreaded)	-55 °C	125 °C	Steel, Yellow Cadmium Plated	Crimp		Natural	20 AWG	26 AWG	B, DB	3
Amphenol Positronic M24308/4-14F	Copper Alloy	UL94 V-0	Male Pins, Plug	62	4	Gold	5 A	Polyester, Glass Filled	D-Sub, High Density	3	Signal	Housing/Shell (Unthreaded)	-55 °C	125 °C	Steel, Yellow Cadmium Plated	Crimp		Natural	22 AWG	28 AWG
Amphenol Positronic M24308/4-260Z			Plug for Male Contacts	15	2			Polyester, Glass Filled	D-Sub	2	Signal	Housing/Shell (Unthreaded)	-55 °C	125 °C	Steel, Yellow Chromate Plated Zinc			Natural					500	Contacts Not Included
Amphenol Positronic M24308/4-1F	Copper Alloy	UL94 V-0	Male Pins, Plug	9		Gold	7.5 A	Polyester, Glass Filled	D-Sub	2	Signal	Housing/Shell (Unthreaded)	-55 °C	125 °C	Steel, Yellow Cadmium Plated	Crimp		Natural	20 AWG	26 AWG	DE, E	1
Amphenol Positronic M24308/4-14Z	Copper Alloy		Male Pins, Plug	62	4	Gold	7.5 A		D-Sub, High Density	3	Signal	Housing/Shell (Unthreaded)	-55 °C	125 °C	Steel, Yellow Chromate Plated Zinc	Crimp									Shielded	1000 VDC
Amphenol Positronic M24308/4-12F	Copper Alloy	UL94 V-0	Male Pins, Plug	26	2	Gold	5 A	Polyester, Glass Filled	D-Sub, High Density	3	Signal	Housing/Shell (Unthreaded)	-55 °C	125 °C	Steel, Yellow Cadmium Plated	Crimp		Natural	22 AWG	28 AWG							(DA, A) High Density
Amphenol Positronic M24308/4-326F			Plug for Male Contacts					Polyester, Glass Filled	D-Sub	2	Signal	Housing/Shell (Unthreaded)	-55 °C	125 °C	Steel, Yellow Cadmium Plated			Natural			B, DB	3	500	Contacts Not Included
Amphenol Positronic M24308/4-13Z	Copper Alloy	UL94 V-0	Male Pins, Plug	44		Gold	5 A	Polyester, Glass Filled	D-Sub, High Density	3	Signal	Housing/Shell (Unthreaded)	-55 °C	125 °C	Steel, Yellow Chromate Plated Zinc	Crimp		Natural	22 AWG	28 AWG								3	B, DB
