2-1375820-0

Active

TE Connectivity AMP Connectors

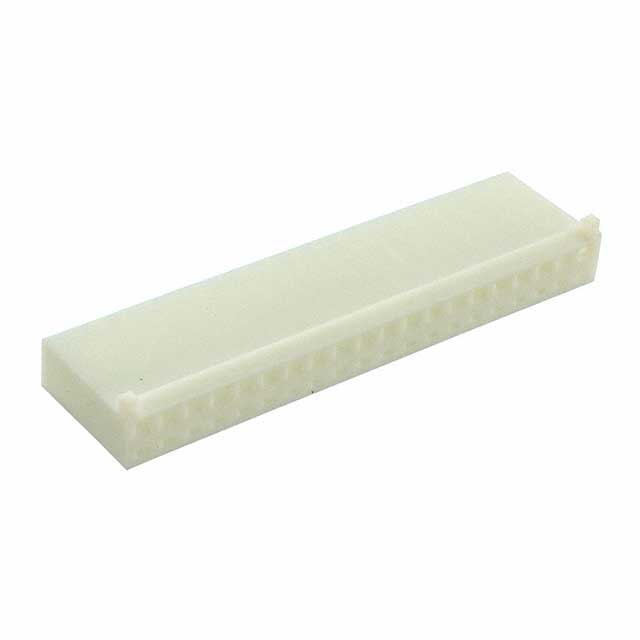

CONN RCPT HSG 20POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

2-1375820-0

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 20POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2-1375820-0	1375820 Series

Color	White	White
Connector Type	Receptacle	Receptacle
Contact Termination	Crimp	Crimp
Contact Type	Female Socket	Female Socket
Fastening Type	Locking Ramp	Locking Ramp
Insulation Material	Nylon, Polyamide (PA), Glass Filled	Nylon, Polyamide (PA), Glass Filled
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	20	4 - 28
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch [x]	2.54 mm	2.54 mm
Pitch [x]	0.1 in	0.1 in

1375820 Series

CONN RCPT HSG 25POS 2.54MM

Part	Connector Type	Mounting Type	Contact Termination	Color	Pitch [x]	Pitch [x]	Insulation Material	Note	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Number of Rows	Number of Positions
TE Connectivity AMP Connectors 2-1375820-5	Receptacle	Free Hanging (In-Line)	Crimp	White	2.54 mm	0.1 in	Glass Filled, Nylon, Polyamide (PA)	Contacts Not Included	Female Socket	105 ░C	-55 °C	Locking Ramp	1
TE Connectivity AMP Connectors 2-1375820-7	Receptacle	Free Hanging (In-Line)	Crimp	White	2.54 mm	0.1 in	Nylon, Polyamide (PA)	Contacts Not Included	Female Socket	105 ░C	-55 °C	Locking Ramp	1	27
TE Connectivity AMP Connectors 2-1375820-1	Receptacle	Free Hanging (In-Line)	Crimp	White	2.54 mm	0.1 in	Glass Filled, Nylon, Polyamide (PA)	Contacts Not Included	Female Socket	105 ░C	-55 °C	Locking Ramp	1	21
TE Connectivity AMP Connectors 1-1375820-2	Receptacle	Free Hanging (In-Line)	Crimp	White	2.54 mm	0.1 in	Glass Filled, Nylon, Polyamide (PA)	Contacts Not Included	Female Socket	105 ░C	-55 °C	Locking Ramp	1	12
TE Connectivity AMP Connectors 1375820-4	Receptacle	Free Hanging (In-Line)	Crimp	White	2.54 mm	0.1 in	Nylon, Polyamide (PA)	Contacts Not Included	Female Socket	105 ░C	-55 °C	Locking Ramp	1	4
TE Connectivity AMP Connectors 2-1375820-0	Receptacle	Free Hanging (In-Line)	Crimp	White	2.54 mm	0.1 in	Glass Filled, Nylon, Polyamide (PA)	Contacts Not Included	Female Socket	105 ░C	-55 °C	Locking Ramp	1	20
TE Connectivity AMP Connectors 2-1375820-2	Receptacle	Free Hanging (In-Line)	Crimp	White	2.54 mm	0.1 in	Glass Filled, Nylon, Polyamide (PA)	Contacts Not Included	Female Socket	105 ░C	-55 °C	Locking Ramp	1	22 positions
TE Connectivity AMP Connectors 2-1375820-6	Receptacle	Free Hanging (In-Line)	Crimp	White	2.54 mm	0.1 in	Glass Filled, Nylon, Polyamide (PA)	Contacts Not Included	Female Socket	105 ░C	-55 °C	Locking Ramp	1	26
TE Connectivity AMP Connectors 2-1375820-8	Receptacle	Free Hanging (In-Line)	Crimp	White	2.54 mm	0.1 in	Nylon, Polyamide (PA)	Contacts Not Included	Female Socket	105 ░C	-55 °C	Locking Ramp	1	28
TE Connectivity AMP Connectors 2-1375820-4	Receptacle	Free Hanging (In-Line)	Crimp	White	2.54 mm	0.1 in	Glass Filled, Nylon, Polyamide (PA)	Contacts Not Included	Female Socket	105 ░C	-55 °C	Locking Ramp	1	24

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.08
		10	$ 0.92
		25	$ 0.86
		50	$ 0.82
		100	$ 0.78
		250	$ 0.73
		500	$ 0.70
		1000	$ 0.67
		2500	$ 0.62

Description

General part information

1375820 Series

20 Rectangular Connectors - Housings Receptacle White 0.100" (2.54mm)
