PTA.M1.0GL.LC39G

Active

LEMO

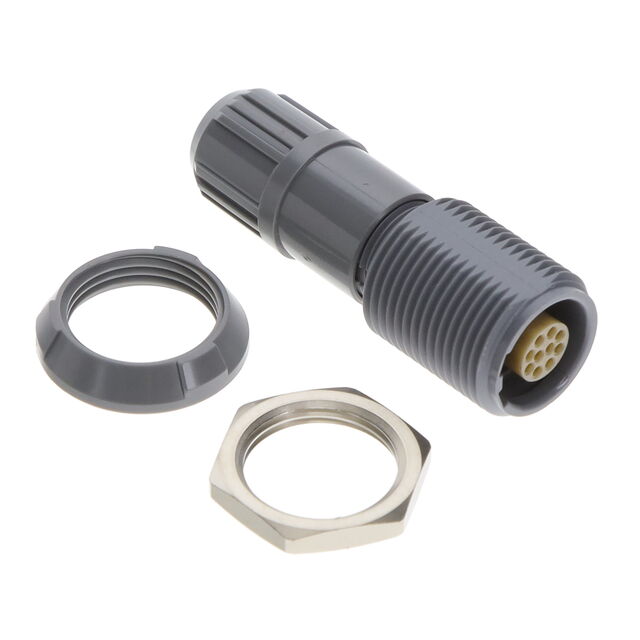

CONN RCPT FMALE 10P SOLDER CUP

Search across all available documentation for this part.

Active

LEMO

CONN RCPT FMALE 10P SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	PTA.M1.0GL.LC39G

Applications	Medical, Industrial, Automotive, Testing Equipment & Measurement
Backshell Material, Plating	Polysulfone (PSU)
Cable Opening [Max] [diameter]	0.154 in
Cable Opening [Max] [diameter]	3.9 mm
Cable Opening [Min] [diameter]	2.7 mm
Cable Opening [Min] [diameter]	0.106 in
Color	Gray
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Current Rating (Amps)	3 A
Fastening Type	Detent Lock, Push-Pull
Features	Backshell
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Mounting Feature	Front and Rear Side Nut
Mounting Type	Free Hanging (In-Line), Panel Mount
Number of Positions	10
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-50 °C
Orientation	A
Primary Material	Plastic
Shell Material	Polysulfone (PSU)
Shell Size - Insert	M10
Shielding	Unshielded

CONN RCPT FMALE 10P SOLDER CUP

Part	Contact Finish - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Shell Material	Current Rating (Amps)	Features	Mounting Type	Backshell Material, Plating	Ingress Protection	Connector Type	Applications	Fastening Type	Shielding	Shell Size - Insert	Color	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Orientation	Primary Material	Insert Material	Number of Positions	Mounting Feature
LEMO PTA.M1.0GL.LC39G	Gold	150 °C	-50 °C	Polysulfone (PSU)	3 A	Backshell	Free Hanging (In-Line), Panel Mount	Polysulfone (PSU)	IP50	Receptacle, Female Sockets	Automotive, Industrial, Medical, Testing Equipment & Measurement	Detent Lock, Push-Pull	Unshielded	M10	Gray	2.7 mm	0.154 in	3.9 mm	0.106 in	A	Plastic	Polyetheretherketone (PEEK)	10	Front and Rear Side Nut

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Position Circular Connector Receptacle, Female Sockets Solder Cup
