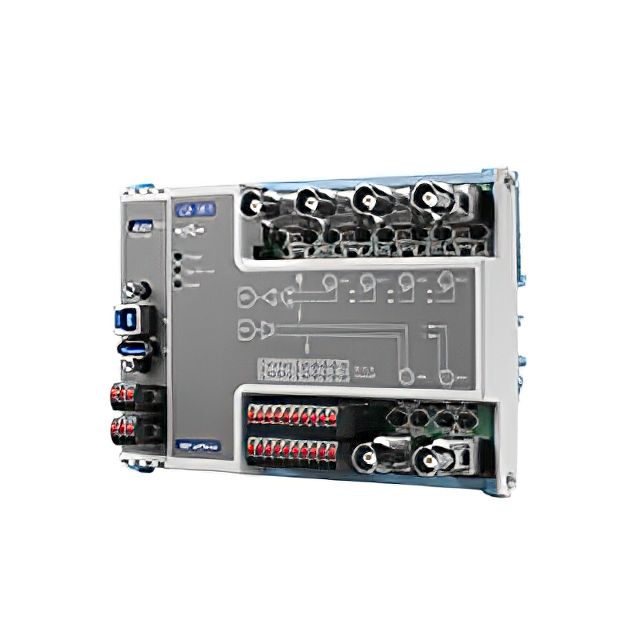

USB-5801-AE
ActiveAdvantech Corp
MODULE USB 3.0 4CH 24BIT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | USB-5801-AE |
|---|---|
| Bus Connection | USB 3.0 |
| Front Connection | Screw Terminal, BNC |
| Input Range | 10 V |
| Input Resolution | 24 Bits |
| Number of Inputs and Type [custom] | 4 |
| Number of Inputs and Type [custom] | 8 |
| Number of Outputs and Type [custom] | 6 |
| Number of Outputs and Type [custom] | 4 |
| Output Range [Max] | 40 V |
| Output Range [Min] | 5 V |
| Output Resolution | 24 Bits |
| Sampling Rate (Per Second) | 192k |
| Type | Module |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1431.01 | |
Description
General part information
USB-5801-AE
Module USB 3.0 BNC, Screw Terminal
