1020B-3

Active

Staco Energy Products Company

VARIABLE, MOTOR DRIVEN, THREE PHASE, 50HZ / 60HZ, 480V, 560V

Search across all available documentation for this part.

Active

Staco Energy Products Company

VARIABLE, MOTOR DRIVEN, THREE PHASE, 50HZ / 60HZ, 480V, 560V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1840.00
Newark	Each	1	$ 2029.37

General part information

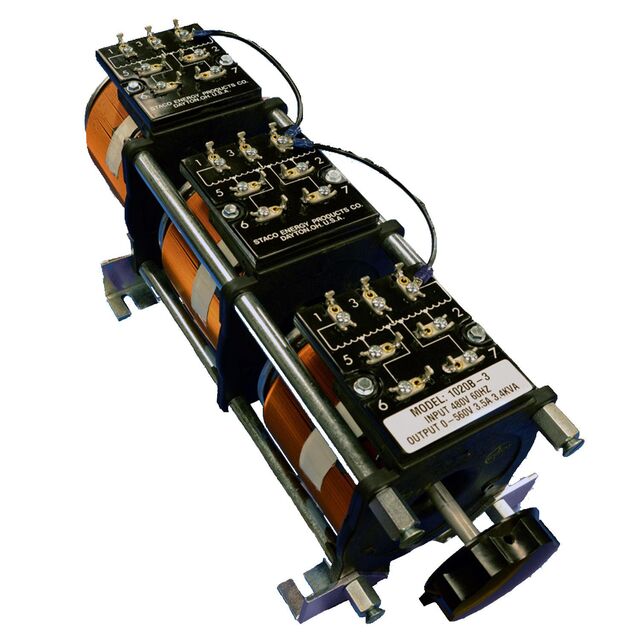

The 1020B-3 is a 3-phase Variable Transformer with coil tapping arrangements allow for 0 to input line voltage or 17% above line voltage.

Specification	1020B-3	1020B Series

Constant Current Load - Max	-	1.96 kVA
Constant Current Load - Max	-	0.98 kVA
Constant Current Load - Max [Max]	3.5 A	3.5 A
Output Type	Terminals	Terminals
Size	-	117.35 - 152.4 mm
Size	-	112.78 - 377.95 mm
Size [x]	155.96 mm	155.96 - 174.75 mm
Size [x]	6.14 in	6.14 - 6.88 in
Size [y]	6 in	4.62 - 6 in
Size [y]	152.4 mm	152.4 mm
Size [z]	14.59 in	4.44 - 14.88 in
Size [z]	370.59 mm	247.65 - 370.59 mm
Type	Panel Mount	Panel Mount
Voltage - Output	560 VAC, 480 VAC	240 - 560 VAC
Voltage - Supply	480 VAC, 240 VAC	120 - 480 VAC

Part	Voltage - Supply	Output Type	Type	Voltage - Output	Constant Current Load - Max [Max]	Constant Current Load - Max	Size [z]	Size [z]	Size [x]	Size [y]	Size [x]	Size [y]	Size [y]	Size [z]	Constant Current Load - Max
Staco Energy Products Company 1020B-2	120 VAC, 240 VAC, 480 VAC	Terminals	Panel Mount	240 VAC, 280 VAC, 480 VAC, 560 VAC	3.5 A	1.96 kVA	9.75 in	247.65 mm	155.96 mm	152.4 mm	6.14 in	6 in
Staco Energy Products Company 1020B-3	240 VAC, 480 VAC	Terminals	Panel Mount	480 VAC, 560 VAC	3.5 A		14.59 in	370.59 mm	155.96 mm	152.4 mm	6.14 in	6 in
Staco Energy Products Company 1020BCT-2	120 VAC, 240 VAC, 480 VAC	Terminals	Panel Mount	240 VAC, 280 VAC, 480 VAC, 560 VAC	3.5 A	1.96 kVA	10.03 in		174.75 mm		6.88 in	6 in	152.4 mm	254.76 mm
Staco Energy Products Company 1020BCT	120 VAC, 240 VAC	Terminals	Panel Mount	240 VAC, 280 VAC	3.5 A		4.44 "		160.27 mm		6.31 in	4.62 in	117.35 mm	112.78 mm	0.98 kVA
Staco Energy Products Company 1020BCT-3	240 VAC, 480 VAC	Terminals	Panel Mount	480 VAC, 560 VAC	3.5 A		14.88 in		174.75 mm		6.88 in	6 in	152.4 mm	377.95 mm
