25192 BK005
ActiveALPHA WIRE

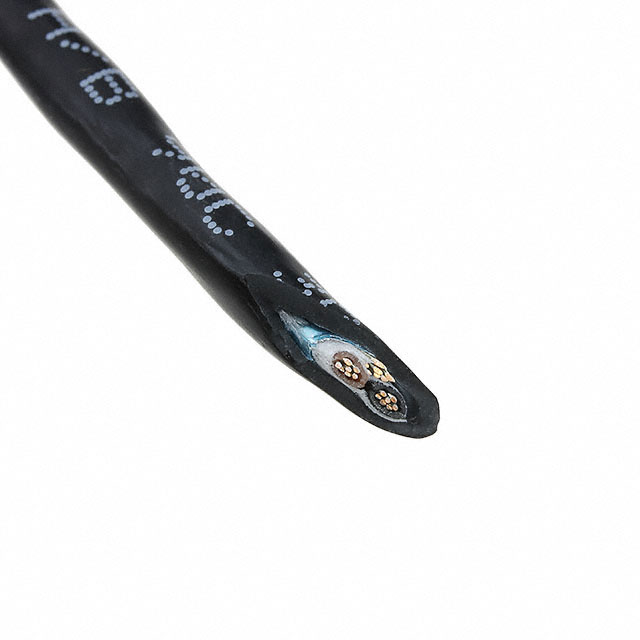

CABLE 2COND 22AWG BLK SHLD 100'
Deep-Dive with AI
Search across all available documentation for this part.
25192 BK005
ActiveALPHA WIRE
CABLE 2COND 22AWG BLK SHLD 100'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 25192 BK005 | 25192 Series |
|---|---|---|
| Cable Type | Multi-Conductor | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Tinned | Copper, Tinned |
| Conductor Strand [custom] | 7 | 7 |
| Conductor Strand [custom] | 30 AWG | 30 AWG |
| Features | Rip Cord, Biological Compatibility, Drain Wire | Rip Cord, Biological Compatibility, Drain Wire |
| Jacket (Insulation) Material | Polyurethane (PU) | Polyurethane (PU) |
| Jacket Color | Black | Red, Black, Slate |
| Length | - | 1000 ft |
| Length | - | 304.8 m |
| Length | - | Enter Number of Feet in Order Quantity |
| Length [x] | 30.5 m | 30.5 m |
| Length [x] | 100 ft | 100 ft |
| Number of Conductors | 2 | 2 |
| Operating Temperature [Max] | 90 °C | 90 °C |
| Operating Temperature [Min] | -30 ░C | -30 ░C |
| Ratings | UL Style 20668, ISO 10993 | UL Style 20668, ISO 10993 |
| Shield Coverage | 100 % | 100 % |
| Shield Material | Aluminum | Aluminum |
| Shield Type | Foil | Foil |
| Spool Size | - | 1000 ft |
| Spool Size | - | 304.8 m |
| Voltage | 300 V | 300 V |
| Wire Gauge | 22 AWG | 22 AWG |
25192 Series
CABLE 2COND 22AWG RED SHLD 1000'
| Part | Wire Gauge | Cable Type | Number of Conductors | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Insulation | Ratings | Length | Length | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Material | Shield Material | Shield Type | Jacket Color | Shield Coverage | Jacket (Insulation) Material | Features | Voltage | Length [x] | Length [x] | Spool Size | Spool Size | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ALPHA WIRE 25192 RD199 | 22 AWG | Multi-Conductor | 2 | 7 | 30 AWG | Poly-Vinyl Chloride (PVC) | ISO 10993, UL Style 20668 | 1000 ft | 304.8 m | -30 ░C | 90 °C | Copper, Tinned | Aluminum | Foil | Red | 100 % | Polyurethane (PU) | Biological Compatibility, Drain Wire, Rip Cord | 300 V | |||||
ALPHA WIRE 25192 BK005 | 22 AWG | Multi-Conductor | 2 | 7 | 30 AWG | Poly-Vinyl Chloride (PVC) | ISO 10993, UL Style 20668 | -30 ░C | 90 °C | Copper, Tinned | Aluminum | Foil | Black | 100 % | Polyurethane (PU) | Biological Compatibility, Drain Wire, Rip Cord | 300 V | 30.5 m | 100 ft | |||||
ALPHA WIRE 25192 BK199 | 22 AWG | Multi-Conductor | 2 | 7 | 30 AWG | Poly-Vinyl Chloride (PVC) | ISO 10993, UL Style 20668 | -30 ░C | 90 °C | Copper, Tinned | Aluminum | Foil | Black | 100 % | Polyurethane (PU) | Biological Compatibility, Drain Wire, Rip Cord | 300 V | 1000 ft | 304.8 m | Enter Number of Feet in Order Quantity | ||||
ALPHA WIRE 25192 SL199 | 22 AWG | Multi-Conductor | 2 | 7 | 30 AWG | Poly-Vinyl Chloride (PVC) | ISO 10993, UL Style 20668 | 1000 ft | 304.8 m | -30 ░C | 90 °C | Copper, Tinned | Aluminum | Foil | Slate | 100 % | Polyurethane (PU) | Biological Compatibility, Drain Wire, Rip Cord | 300 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 250.53 | |
| 3 | $ 232.11 | |||
| 5 | $ 229.62 | |||
Description
General part information
25192 Series
2 Conductor Multi-Conductor Cable Black 22 AWG Foil 100.0' (30.5m)
