B82477P4684M000
ActiveEPCOS - TDK Electronics
FIXED IND 680UH 690MA 1.05OHM SM
B82477P4684M000
ActiveEPCOS - TDK Electronics
FIXED IND 680UH 690MA 1.05OHM SM
Description
General part information
B82477P4684M000

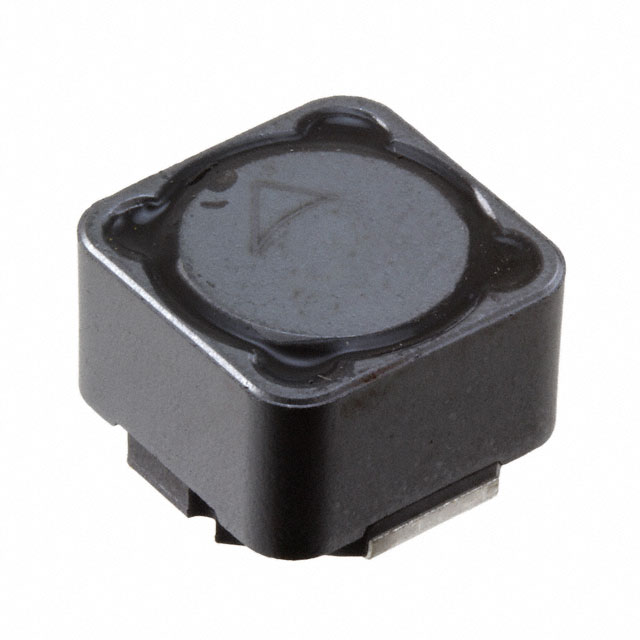

680 µH Shielded Drum Core, Wirewound Inductor 690 mA 1.05Ohm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | B82477P4684M000 |
|---|---|
| Current - Saturation (Isat) | 0.78 mA |
| Current Rating | 690 mA |
| DC Resistance (DCR) (Max) | 1.05 Ohm |
| Height - Seated (Max) | 0.335 in |
| Inductance | 680 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Nonstandard |
| Ratings | AEC-Q200 |
| Shielding | Shielded |
| Size / Dimension Length | 0.492 in |
| Size / Dimension Width | 0.492 in |
| Tolerance | 20 % |
| Type | Drum Core, Wirewound |
