F727503700
ActiveRadiall USA, Inc.
LC PC DUPLEX PLUG MM128UM FOR CA
F727503700
ActiveRadiall USA, Inc.
LC PC DUPLEX PLUG MM128UM FOR CA
Description
General part information
F727503700

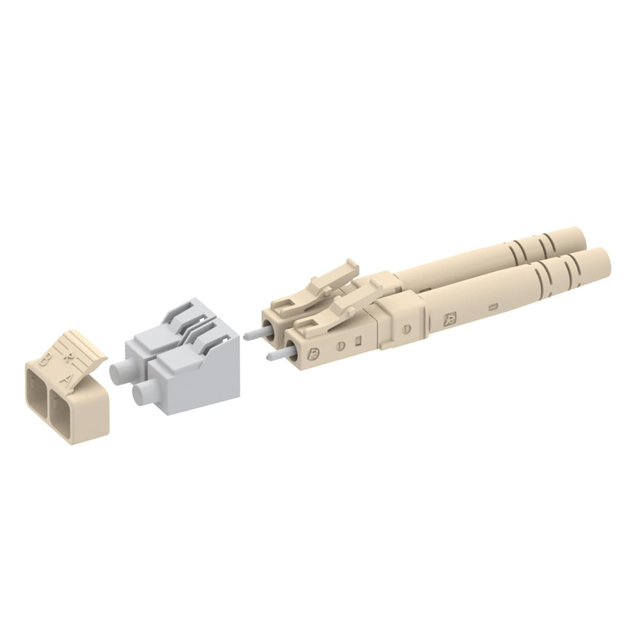

Fiber Optic Plug Connector LC Duplex 125µm Beige
Technical Specifications
Parameters and characteristics for this part
| Specification | F727503700 |
|---|---|
| Attenuation (Typical) | -0.1 dB |
| Cable Diameter (Maximum) | 3 mm |
| Cable Diameter (Minimum) | 2.8 mm |
| Connector Style | LC |
| Connector Type | Plug |
| Fastening Type | Latch Lock |
| Ferrule Material | Zirconia |
| Fiber Cladding Diameter | 125 µm |
| Fiber Core Diameter | 62.5 µm |
| Housing Color | Beige |
| Mating Cycles | 200 cycles |
| Mode | Multimode |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Reflection | -20 dB |
| Simplex/Duplex | Duplex |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
