IS25LP512M-RGLE

Active

ISSI, Integrated Silicon Solution Inc

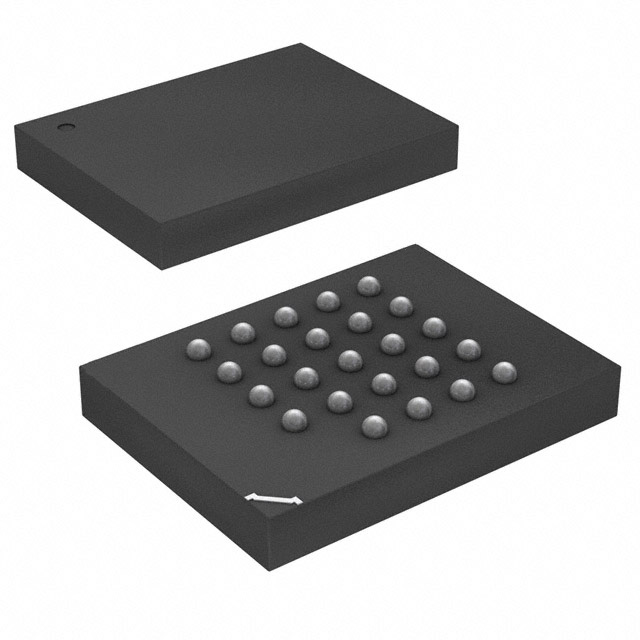

IC FLASH 512MBIT SPI 24TFBGA

Deep-Dive with AI

Search across all available documentation for this part.

IS25LP512M-RGLE

Active

ISSI, Integrated Silicon Solution Inc

IC FLASH 512MBIT SPI 24TFBGA

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

IS25LP512 Series

FLASH - NOR Memory IC 512Mbit SPI - Quad I/O, QPI, DTR 133 MHz 24-TFBGA (6x8)

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	IS25LP512M-RGLE	IS25LP512 Series

Access Time	-	5.5 - 7 ns
Clock Frequency	133 MHz	133 - 166 MHz
Grade	-	Automotive
Memory Format	FLASH	FLASH
Memory Interface	Quad I/O, QPI, SPI, DTR	Quad I/O, QPI, SPI, DTR
Memory Organization	64 M	64 M
Memory Size	64 MB	64 MB
Memory Type	Non-Volatile	Non-Volatile
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	105 °C	85 - 125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	24-TBGA	8-WDFN Exposed Pad, 16-SOIC, 24-TBGA
Package / Case	-	0.295 in
Package / Case	-	7.5 mm
Qualification	-	AEC-Q100
Supplier Device Package	24-TFBGA (6x8)	8-WSON (8x6), 16-SOIC, 24-TFBGA (6x8)
Technology	FLASH - NOR	FLASH - NOR (SLC), FLASH - NOR
Voltage - Supply [Max]	3.6 V	3.6 V
Voltage - Supply [Min]	2.3 V	2.3 - 2.7 V
Write Cycle Time - Word, Page	-	2 ms
Write Cycle Time - Word, Page [custom]	1.6 ms	1 - 4 ms
Write Cycle Time - Word, Page [custom]	1.6 ms	1.6 - 70 µs

IS25LP512 Series

IC FLASH 512MBIT SPI/QUAD 8WSON

Part	Write Cycle Time - Word, Page [custom]	Write Cycle Time - Word, Page [custom]	Memory Type	Supplier Device Package	Access Time	Clock Frequency	Memory Format	Memory Interface	Package / Case	Memory Organization	Technology	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Memory Size	Write Cycle Time - Word, Page	Package / Case [x]	Package / Case [y]	Grade	Qualification
ISSI, Integrated Silicon Solution Inc IS25LP512MG-JLLE-TR	4 ms	70 µs	Non-Volatile	8-WSON (8x6)	5.5 ns	166 MHz	FLASH	DTR, QPI, Quad I/O, SPI	8-WDFN Exposed Pad	64 M	FLASH - NOR (SLC)	Surface Mount	105 °C	-40 °C	2.3 V	3.6 V	64 MB
ISSI, Integrated Silicon Solution Inc IS25LP512MG-JLLI			Non-Volatile	8-WSON (8x6)	5.5 ns	166 MHz	FLASH	DTR, QPI, Quad I/O, SPI	8-WDFN Exposed Pad	64 M	FLASH - NOR	Surface Mount	85 °C	-40 °C	2.3 V	3.6 V	64 MB	2 ms
ISSI, Integrated Silicon Solution Inc IS25LP512MH-RMLE-TY	1 ms	50 µs	Non-Volatile	16-SOIC		133 MHz	FLASH	DTR, QPI, Quad I/O, SPI	16-SOIC	64 M	FLASH - NOR	Surface Mount	105 °C	-40 °C	2.7 V	3.6 V	64 MB		0.295 in	7.5 mm
ISSI, Integrated Silicon Solution Inc IS25LP512MG-RMLE	1 ms	50 µs	Non-Volatile	16-SOIC	5.5 ns	166 MHz	FLASH	DTR, QPI, Quad I/O, SPI	16-SOIC	64 M	FLASH - NOR	Surface Mount	105 °C	-40 °C	2.3 V	3.6 V	64 MB		0.295 in	7.5 mm
ISSI, Integrated Silicon Solution Inc IS25LP512M-RMLE-TR	1.6 ms	1.6 ms	Non-Volatile	16-SOIC		133 MHz	FLASH	DTR, QPI, Quad I/O, SPI	16-SOIC	64 M	FLASH - NOR	Surface Mount	105 °C	-40 °C	2.3 V	3.6 V	64 MB		0.295 in	7.5 mm
ISSI, Integrated Silicon Solution Inc IS25LP512MG-RHLI			Non-Volatile	24-TFBGA (6x8)	5.5 ns	166 MHz	FLASH	DTR, QPI, Quad I/O, SPI	24-TBGA	64 M	FLASH - NOR	Surface Mount	85 °C	-40 °C	2.3 V	3.6 V	64 MB	2 ms
ISSI, Integrated Silicon Solution Inc IS25LP512MG-RMLI			Non-Volatile	16-SOIC	5.5 ns	166 MHz	FLASH	DTR, QPI, Quad I/O, SPI	16-SOIC	64 M	FLASH - NOR	Surface Mount	85 °C	-40 °C	2.3 V	3.6 V	64 MB	2 ms	0.295 in	7.5 mm
ISSI, Integrated Silicon Solution Inc IS25LP512MG-JLLE	1 ms	50 µs	Non-Volatile	8-WSON (8x6)	5.5 ns	166 MHz	FLASH	DTR, QPI, Quad I/O, SPI	8-WDFN Exposed Pad	64 M	FLASH - NOR	Surface Mount	105 °C	-40 °C	2.3 V	3.6 V	64 MB
ISSI, Integrated Silicon Solution Inc IS25LP512M-RMLA3	1 ms	50 µs	Non-Volatile	16-SOIC	7 ns	133 MHz	FLASH	DTR, QPI, Quad I/O, SPI	16-SOIC	64 M	FLASH - NOR	Surface Mount	125 °C	-40 °C	2.3 V	3.6 V	64 MB		0.295 in	7.5 mm	Automotive	AEC-Q100
ISSI, Integrated Silicon Solution Inc IS25LP512MG-RHLE	1 ms	50 µs	Non-Volatile	24-TFBGA (6x8)	5.5 ns	166 MHz	FLASH	DTR, QPI, Quad I/O, SPI	24-TBGA	64 M	FLASH - NOR	Surface Mount	105 °C	-40 °C	2.3 V	3.6 V	64 MB
