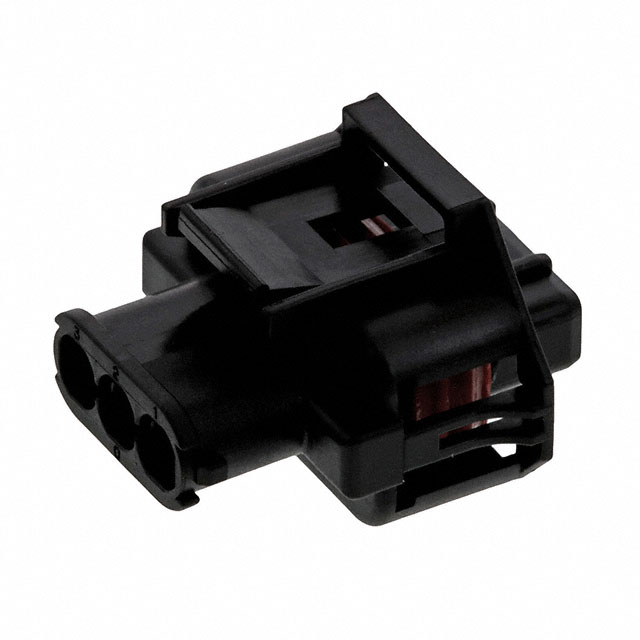

936060-1
ActiveTE Connectivity AMP Connectors
CONN PLUG HSG 3POS 5.00MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
936060-1
ActiveTE Connectivity AMP Connectors
CONN PLUG HSG 3POS 5.00MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 936060-1 | 936060 Series |
|---|---|---|
| - | - | |
| Color | Black | Black |
| Connector Type | Plug | Plug |
| Contact Termination | Crimp | Crimp |
| Contact Type | Female Socket | Female Socket |
| Fastening Type | Latch Lock | Latch Holder, Latch Lock |
| Features | Sealed | Sealed |
| Insulation Material | Nylon, Polyamide (PA), Glass Filled | Polyamide (PA66), Nylon 6/6, Glass Filled, Nylon, Polyamide (PA), Glass Filled |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Rows | 1 | 1 |
| Pitch [x] | 5 mm | 5 mm |
| Pitch [x] | 0.197 in | 0.197 in |
936060 Series
2.8MM SLD 3P PLUG ASSY-TDC
| Part | Insulation Material | Pitch [x] | Pitch [x] | Fastening Type | Number of Rows | Contact Termination | Contact Type | Color | Mounting Type | Connector Type | Features | Note |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 936060-2 | Polyamide (PA66), Nylon 6/6, Glass Filled | 5 mm | 0.197 in | Latch Holder | 1 | Crimp | Female Socket | Black | Free Hanging (In-Line) | Plug | Sealed | |
TE Connectivity AMP Connectors 2-936060-1 | ||||||||||||
TE Connectivity AMP Connectors 936060-1 | Glass Filled, Nylon, Polyamide (PA) | 5 mm | 0.197 in | Latch Lock | 1 | Crimp | Female Socket | Black | Free Hanging (In-Line) | Plug | Sealed | Contacts Not Included |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 1.06 | |
| 10 | $ 0.97 | |||
| 25 | $ 0.94 | |||
| 50 | $ 0.93 | |||
| 150 | $ 0.86 | |||
| 300 | $ 0.85 | |||
| 600 | $ 0.84 | |||
Description
General part information
936060 Series
3 Rectangular Connectors - Housings Plug Black 0.197" (5.00mm)
