2-1318115-9
ActiveTE Connectivity AMP Connectors

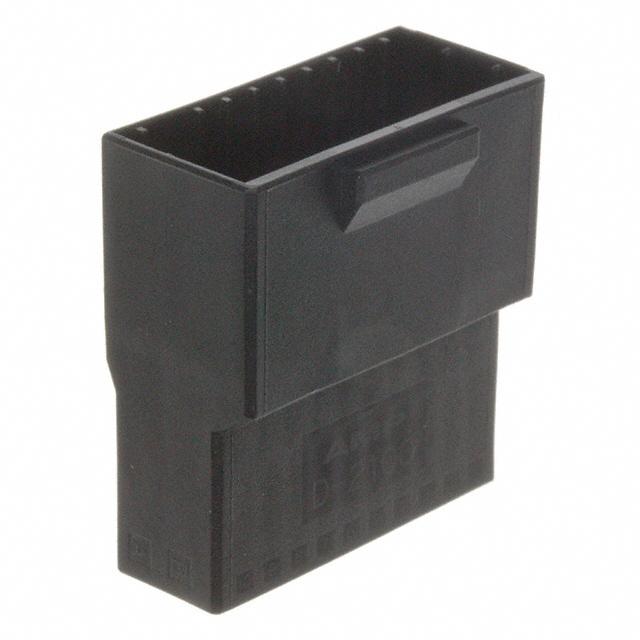

CONN PLUG HSG 20POS 2.50MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2-1318115-9
ActiveTE Connectivity AMP Connectors
CONN PLUG HSG 20POS 2.50MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2-1318115-9 | 1318115 Series |
|---|---|---|
| Color | Black | Black |
| Connector Type | Plug | Plug |
| Contact Termination | Crimp | Crimp |
| Contact Type | Male Pin | Male Pin |
| Fastening Type | Locking Ramp | Locking Ramp |
| Features | Polarizing Key | Polarizing Key |
| Insulation Material | Thermoplastic, Glass Filled, Polyester | Thermoplastic, Glass Filled, Polyester |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 20 | 6 - 20 |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Pitch [x] | 0.098 in | 0.098 in |
| Pitch [x] | 2.5 mm | 2.5 mm |
1318115 Series
CONN PLUG HSG 6POS 2.50MM
| Part | Note | Contact Type | Pitch [x] | Pitch [x] | Fastening Type | Connector Type | Insulation Material | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Contact Termination | Number of Rows | Features | Mounting Type | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-1318115-3 | Contacts Not Included | Male Pin | 0.098 in | 2.5 mm | Locking Ramp | Plug | Glass Filled, Polyester, Thermoplastic | 6 | 105 ░C | -55 °C | Crimp | 2 | Polarizing Key | Free Hanging (In-Line) | Black |
TE Connectivity AMP Connectors 2-1318115-9 | Contacts Not Included | Male Pin | 0.098 in | 2.5 mm | Locking Ramp | Plug | Glass Filled, Polyester, Thermoplastic | 20 | 105 ░C | -55 °C | Crimp | 2 | Polarizing Key | Free Hanging (In-Line) | Black |
TE Connectivity AMP Connectors 1-1318115-9 | Contacts Not Included | Male Pin | 0.098 in | 2.5 mm | Locking Ramp | Plug | Glass Filled, Polyester, Thermoplastic | 20 | 105 ░C | -55 °C | Crimp | 2 | Polarizing Key | Free Hanging (In-Line) | Black |
TE Connectivity AMP Connectors 1-1318115-4 | Contacts Not Included | Male Pin | 0.098 in | 2.5 mm | Locking Ramp | Plug | Glass Filled, Polyester, Thermoplastic | 8 | 105 ░C | -55 °C | Crimp | 2 | Polarizing Key | Free Hanging (In-Line) | Black |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1200 | $ 0.84 | |
Description
General part information
1318115 Series
20 Rectangular Connectors - Housings Plug Black 0.098" (2.50mm)
Documents
Technical documentation and resources
