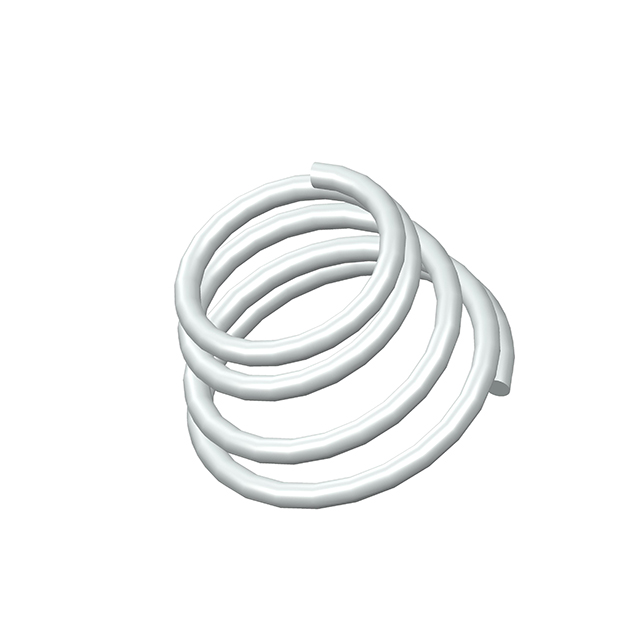

TA-2331CS
ActiveCentury Spring Corp
LO= 1.468, SO= 1.031, W= 0.112
TA-2331CS
ActiveCentury Spring Corp
LO= 1.468, SO= 1.031, W= 0.112
Description
General part information
TA-2331CS
LO= 1.468, SO= 1.031, W= 0.112
Technical Specifications
Parameters and characteristics for this part
| Specification | TA-2331CS |
|---|---|
| Diameter - Inside | 0.81 in |
| Diameter - Large Outside | 1.468 in |
| Diameter - Small Outside | 1.031 in |
| End Style | Ground, Closed |
| Finish | None |
| Free Length | 1 in |
| Material | Stainless Steel |
| Rate (lbs/in) | 66.8 lbs/in |
| Type | Tapered |
| Wire Diameter | 0.112 in |
