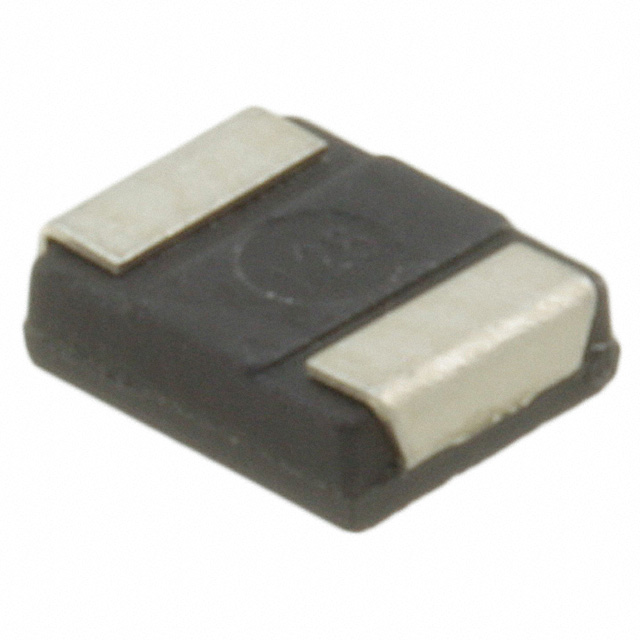

10TPC33MB
ObsoletePanasonic Industrial Automation Sales
NRFND: 09/03/21 REPCMNT 12TPG33M ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 10TPC33MB |
|---|---|
| Capacitance | 33 ÁF |
| Features | General Purpose |
| Height - Seated (Max) [Max] | 1.2 mm |
| Height - Seated (Max) [Max] | 0.047 in |
| Manufacturer Size Code | B1 |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 1411 |
| Package / Case | 3528 Metric |
| Size / Dimension [x] | 0.138 " |
| Size / Dimension [x] | 3.5 mm |
| Size / Dimension [y] | 0.11 in |
| Size / Dimension [y] | 2.8 mm |
| Tolerance | 20 % |
| Type | Molded |
| Voltage - Rated | 10 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Newark | Each (Supplied on Full Reel) | 2000 | $ 4.31 | |
| 4000 | $ 3.87 | |||
| 6000 | $ 3.74 | |||
| 10000 | $ 3.65 | |||
Description
General part information
10TPC33MB
NRFND: 09/03/21 REPCMNT 12TPG33M ROHS COMPLIANT: YES
